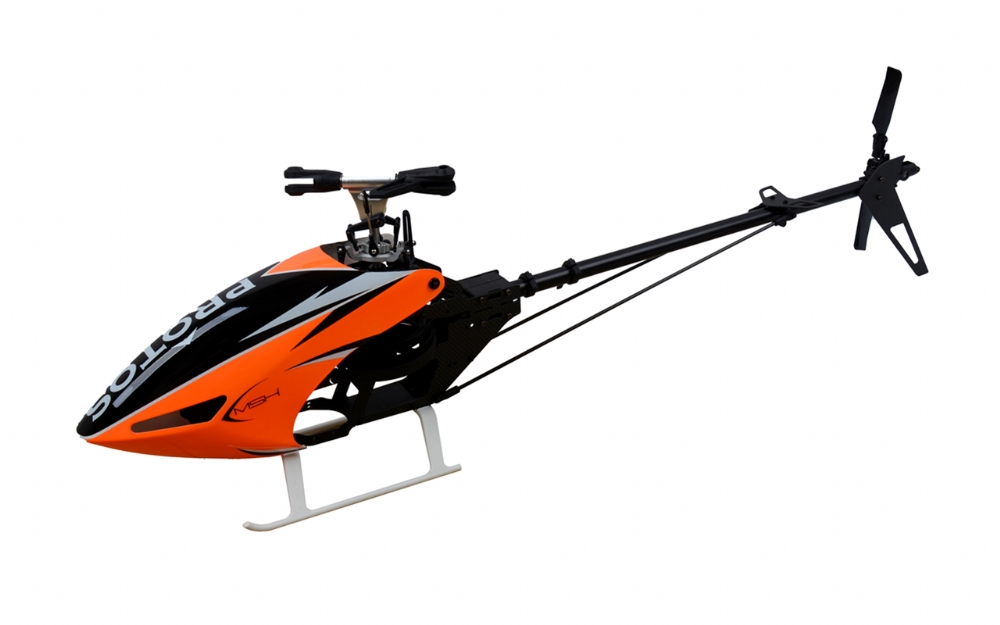

XL38K03 XL380 V2 KIT(Red)

  • Helicopters
  • XL38K03 XL380 V2 KIT(Red)

$ 219.00
-+
Add to cart
Go to cart
Introduction

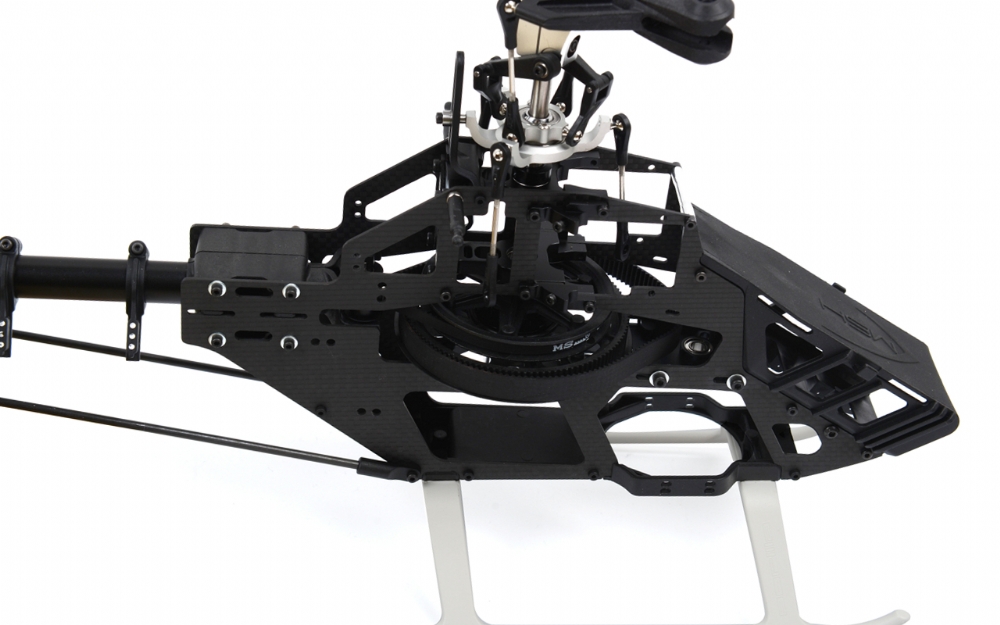

XL380V2 include new frame(XL38B11).  Metal tail ptich (MSH41168). Rigid tail blades(MSH41181-1).Fiber glass canopy

Feature:

1.New servo layout for easier maintenance
2.1.5mm full carbon frame
3.Metail servo frame
4.Fit for Protos original canopy(MSH41182*2+MSH41197 needed)

5.Much more solid tail



Specification:

Main Blade Length: 325-380mm
Tail Blade Length: 68mm
Length: 785mm
Height: 235mm
Width: 110mm
Main Gear: 120T
Tail Gear: 22T
Auto Gear: 94T
Tail Drive Gear Ratio: 4.27
Estimated RTF Weight: 1100g (2lbs 6oz) (Depending on Setup)
Suggested Max Battery Dimensions: 115x40x35mm

Electronic Requirements:

  • Cyclic Servos: Micro size 23mm
  • Tail Servo: Micro size 23mm OR Mini size 35mm
  • Typical Speed Controller:
    • General and 3D Flight: Kontronik Koby 70, YGE 60 LV, CC Lite 75,Hobbywing 50A, Hobbywing 60A V4
    • General and Extreme Flight: Kontronik Koby 90 - Jive 80LV , YGE 90 LV, Hobbywing 80A V4
  • Typical Motor
    • 28XX/30XX/32XX Series w/5mm Pinion 800-1000kV
