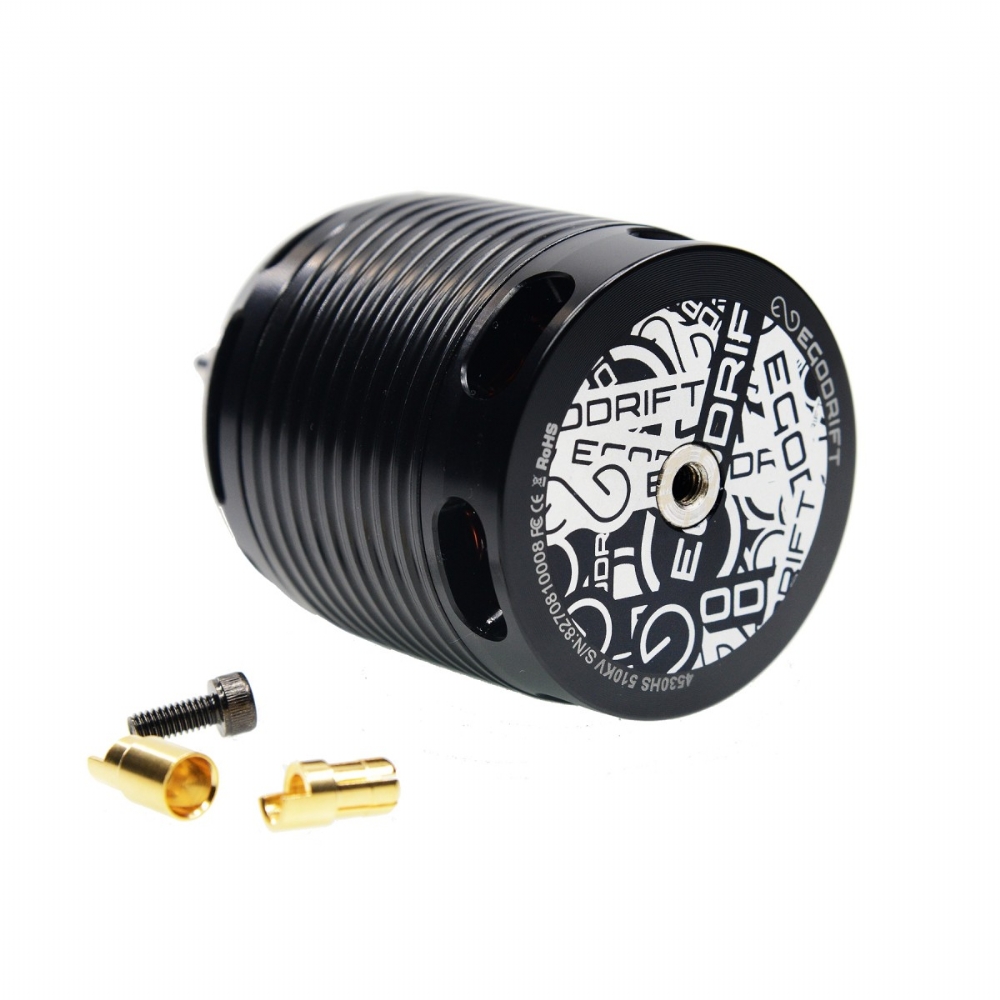

EGODRIFT TENGU 4530HS / 510KV 35mm brushless motor

  • Electronic
  • EGODRIFT TENGU 4530HS / 510KV 35mm brushless motor

$ 349.99
-+
Add to cart
Go to cart
Introduction

SPECIFICATION:

•4525HS Motor(1PSC)

•4*10mm Screw(4PSC)

•6mm banana plug(3 Pair)

MANUFACTURER EGODRIFT
MOTOR CLASS 4530
MOTOR CONFIGURATION 12N10P
MOTOR WEIGHT 525g (17.25oz)
BASE COLOUR Black
WIRE COLOUR Copper
MOTOR WIRE TYPE High temperature copper wire
MOTOR SHAFT Hardened Steel
SHAFT DIAMETER 6.0 mm
LIPO CELLS 12S
MOTOR KV 510 kV
ROATIONS/MIN/VOLT (KV) 510 kV
STATOR DIAMETER 45 mm
STATOR HEIGHT (MM) 30 mm
DIAMETER 56.40 mm
DIAMETER FIXING HOLES (MM) 4,0 mm
IDLE CURRENT 3.7A
MAXIMUM CURRENT (180S) 115A (Peak: 230A / 2 seconds)
MAX. POWER (180S) 5800 W (Peak: 9600W / 2 seconds)
INTERNAL RESISTANCE (IN OHM) 19.8 mOhm
CONNECTION Wire / Gold plated plugs
