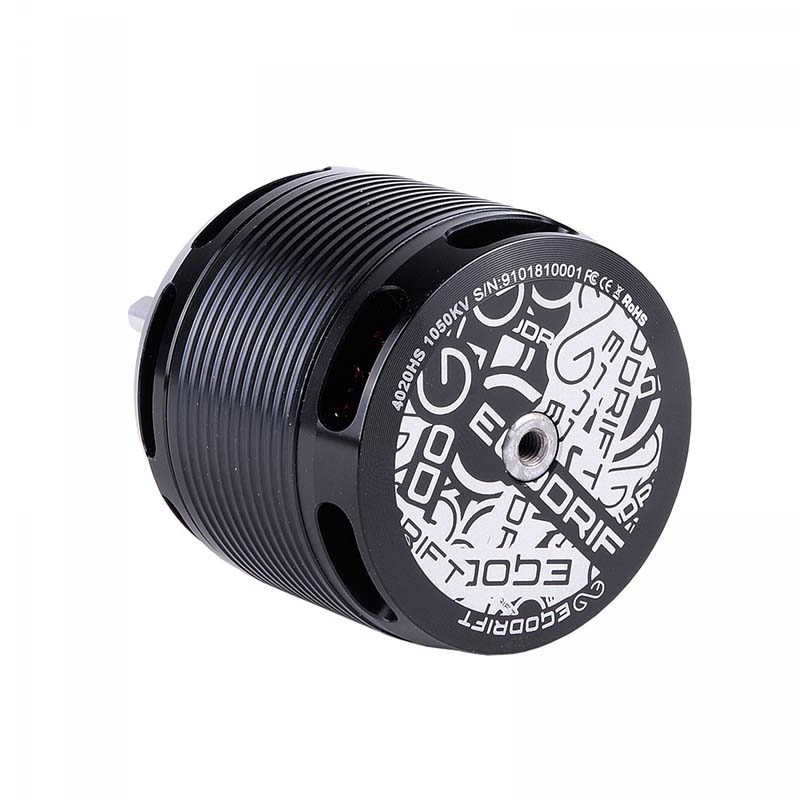

EGODRIFT TENGU 4020HS / 1050KV (6S) Motor

  • Electronic
  • EGODRIFT TENGU 4020HS / 1050KV (6S) Motor

$ 199.99
-+
Add to cart
Go to cart
Introduction
MANUFACTURER EGODRIFT
STATOR SIZE 4020
MOTOR CONFIGURATION 12N10P
MOTOR WEIGHT 290g (10.229 oz)
BASE COLOUR Black
WIRE COLOUR Copper
MOTOR WIRE TYPE High temperature copper wire
MOTOR WIRE THICKNESS (MM) 1.5mm
MOTOR SHAFT Hardened Steel
SHAFT DIAMETER 5.0 mm
LIPO CELLS 6S
MOTOR KV 1050 kV
ROATIONS/MIN/VOLT (KV) 1050 kV
STATOR DIAMETER 40 mm
STATOR HEIGHT (MM) 20 mm
STATOR LAMINATION 0.15 mm (+)
BODY LENGTH (MM) 45mm (1.77 inch)
DIAMETER 49.6mm (1.95 inch)
DIAMETER FIXING HOLES (MM) 3,0 mm
MOTOR HOLE PATTERN 25mm
IDLE CURRENT 5.2A
MAXIMUM CURRENT (180S) 85A (Peak: 110A / 2 seconds)
MAX. POWER (180S) 2040W (Peak: 2640W / 2 seconds)
INTERNAL RESISTANCE (IN OHM) 8.1 mOhm
CONNECTION Wire / Gold plated plugs
DESIGNER Yutao Zou
WHAT'S IN THE BOX
  • 1 x Tengu 4020HS / 1050kV Motor
  • 3 x Gold Plated Connector, Male
  • 3 x Gold Plated Connector, Female
  • 4 x Mounting Screws
  • 1x Bell securing screw
