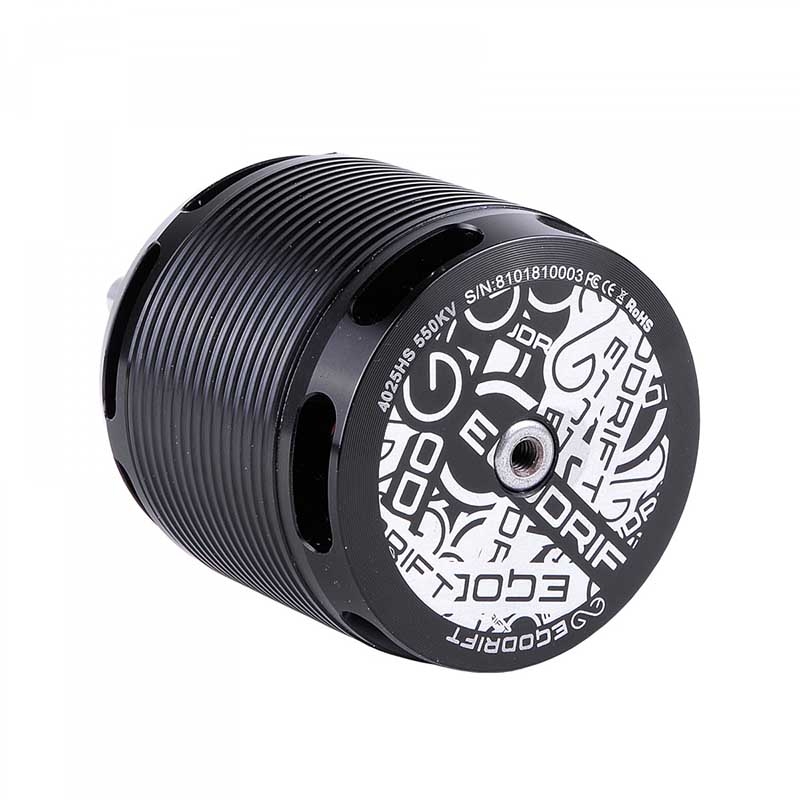

EGODRIFT TENGU 4025HS / 550KV (12S) Motor

  • Electronic
  • EGODRIFT TENGU 4025HS / 550KV (12S) Motor

$ 209.99
-+
Add to cart
Go to cart
Introduction


MANUFACTURER EGODRIFT
STATOR SIZE 4025
MOTOR CONFIGURATION 12N10P
MOTOR WEIGHT 325g (11.464 oz)
BASE COLOUR Black
WIRE COLOUR Copper
MOTOR WIRE TYPE High temperature copper wire
MOTOR WIRE THICKNESS (MM) 1.2mm
MOTOR SHAFT Hardened Steel
SHAFT DIAMETER 6.0 mm
LIPO CELLS 12S
MOTOR KV 550 kV
ROATIONS/MIN/VOLT (KV) 550 kV
STATOR DIAMETER 45 mm
STATOR HEIGHT (MM) 25 mm
STATOR LAMINATION 0.15 mm (+)
BODY LENGTH (MM) 50mm (1.97 inch)
DIAMETER 49.6mm (1.95 inch)
DIAMETER FIXING HOLES (MM) 3,0 mm
MOTOR HOLE PATTERN 25mm, 30mm
IDLE CURRENT 3.2A
MAXIMUM CURRENT (180S) 80A (Peak: 100A / 2 seconds)
MAX. POWER (180S) 4000W (Peak: 5000W / 2 seconds)
INTERNAL RESISTANCE (IN OHM) 21.5 mOhm
CONNECTION Wire / Gold plated plugs
DESIGNER Yutao Zou
WHAT'S IN THE BOX
  • 1 x Tengu 4025HS / 550kV Motor
  • 3 x Gold Plated Connector, Male
  • 3 x Gold Plated Connector, Female
  • 4 x Mounting Screws
  • 1x Bell securing screw
