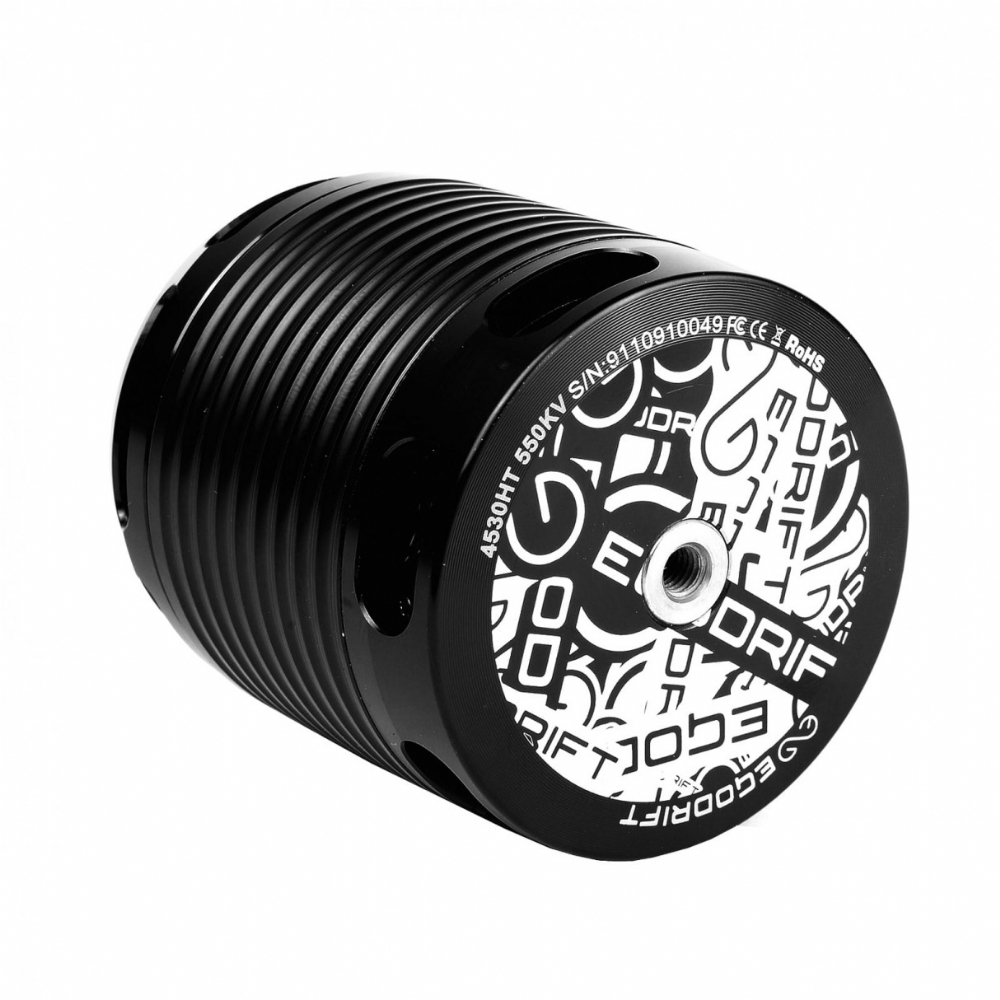

EGODRIFT TENGU 4530HT / 550KV (12-14S) Motor

  • Electronic
  • EGODRIFT TENGU 4530HT / 550KV (12-14S) Motor

$ 399.99
-+
Add to cart
Go to cart
Introduction

SPECIFICATIONS

  • Manufacturer: EGODRIFT
  • Stator size: 4530
  • Motor configuration: 12N10P
  • Motor weight: 525g (17.25oz)
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.4mm
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • LiPo cells: 12S, 14S
  • Motor kV: 550 kV
  • Stator diameter: 45 mm
  • Stator height: 30 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 60.58mm (2.39 inch)
  • Diameter: 56.40 mm (2.22 inch)
  • Screw hole diameter: 4,0 mm
  • Motor hole pattern: 30mm
  • Idle current: 4.8A
  • Maximum Current: 145A (Peak: 265A / 2 seconds)
  • Maximum Power: 6960W (Peak: 13300W / 2 seconds)
  • Internal resistance: 9.9 mOhm
  • Connection: Wire / Gold plated plugs
