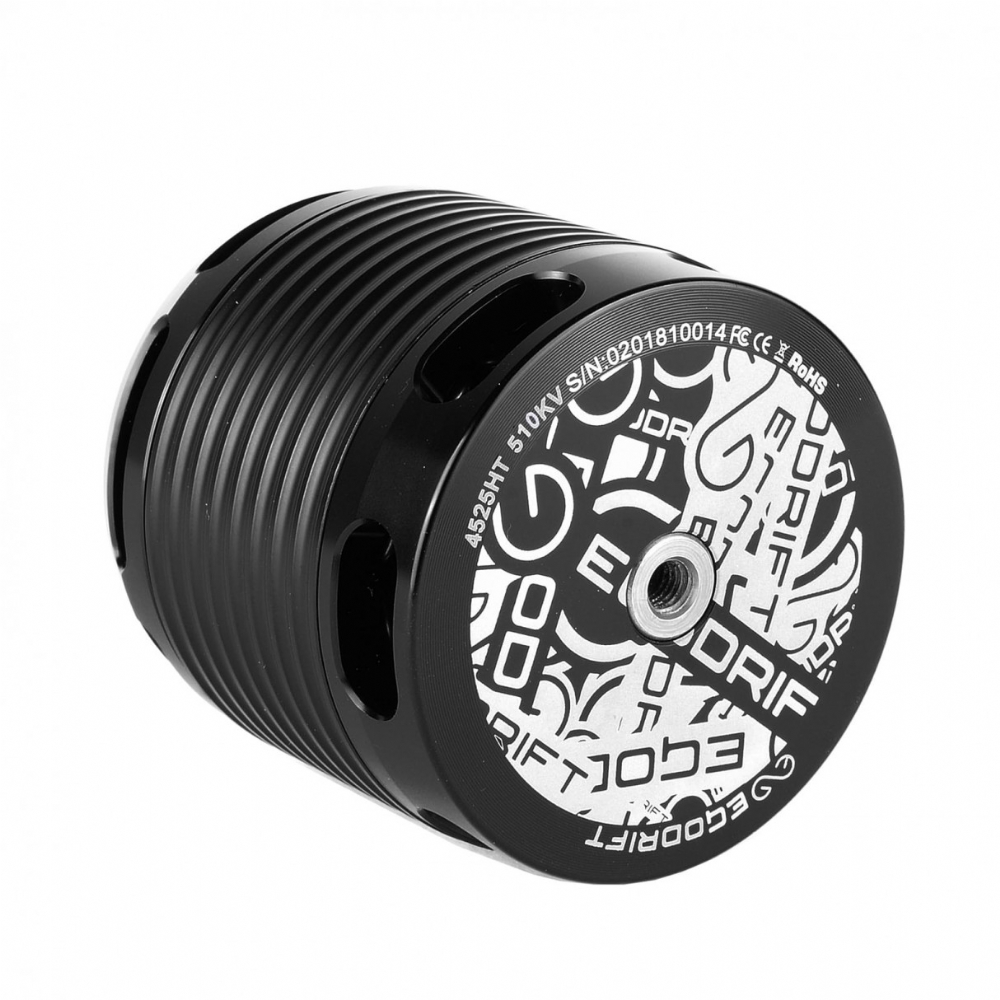

EGODRIFT 4525HT / 510KV (12-14S) Motor

  • Electronic
  • EGODRIFT 4525HT / 510KV (12-14S) Motor

$ 339.99
-+
Add to cart
Go to cart
Introduction

SPECIFICATIONS

  • Manufacturer: EGODRIFT
  • Stator size: 4525
  • Motor configuration: 12N10P
  • Motor weight: 473g (16.23oz)
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.3mm
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • LiPo cells: 12S, 14S
  • Motor kV: 550 kV
  • Stator diameter: 45 mm
  • Stator height: 25 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 66.58mm (2.19 inch)
  • Diameter: 56.40 mm (2.22 inch)
  • Screw hole diameter: 4,0 mm
  • Motor hole pattern: 30mm
  • Idle current: 3.5A
  • Maximum Current: 125A (Peak: 230A / 2 seconds)
  • Maximum Power: 6000W (Peak: 11040W / 2 seconds)
  • Internal resistance: 13 mOhm
  • Connection: Wire / Gold plated plugs
