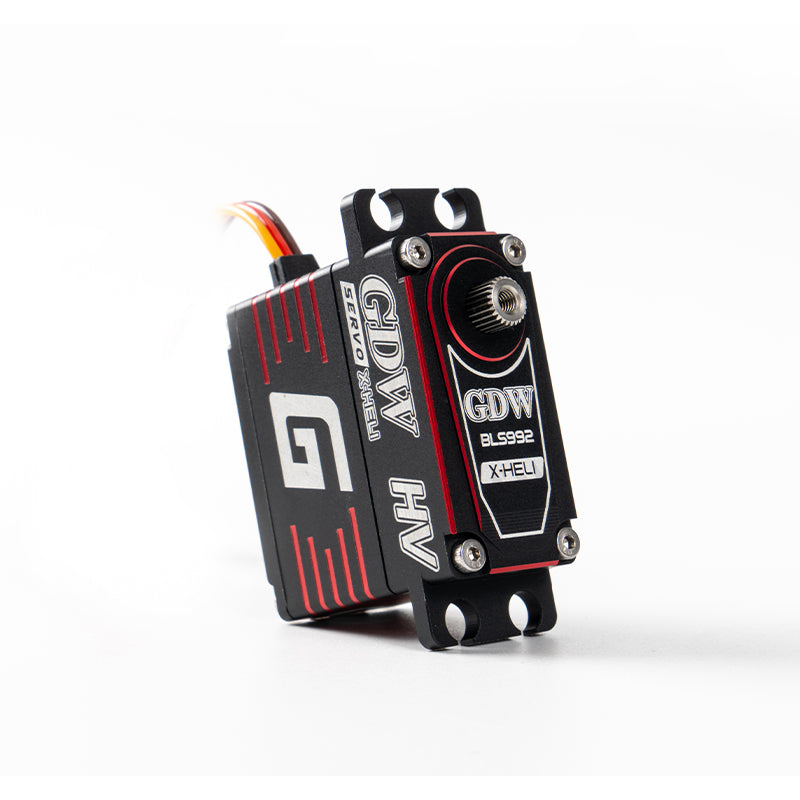

BLS992 - GDW swashplate BLS995 narrow-frequency locking tail competition-level helicopter standard brushless digital servo

BLS992 - GDW swashplate BLS995 narrow-frequency locking tail competition-level helicopter standard brushless digital servo

$77.00 USD
$77.00 USD
Sale Sold out
Shipping calculated at checkout.

Model: BLS992HV

Minimum order: 20

Wheelbase:

Weight: 80g±5

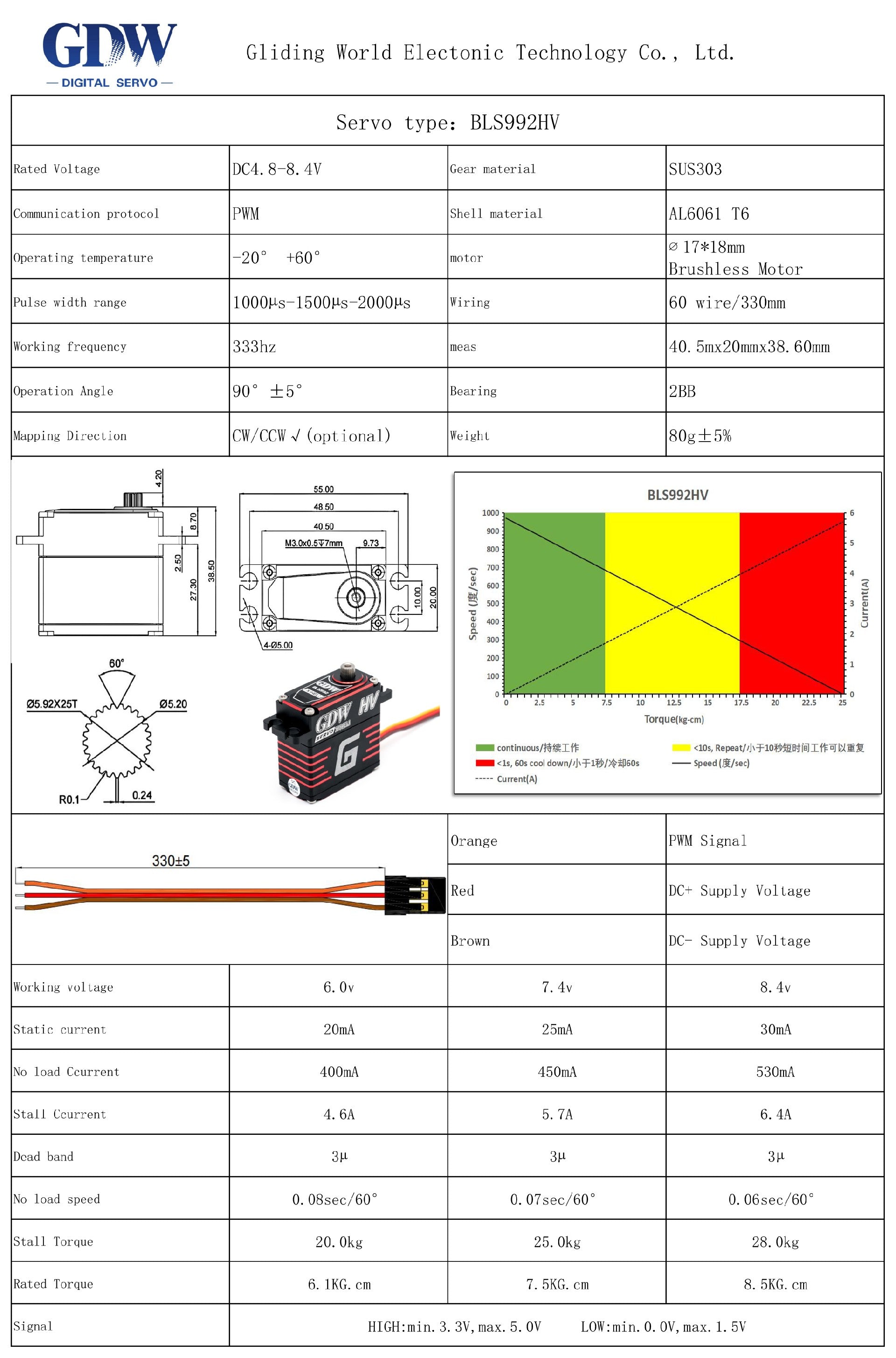

Function: 20Kg.cm/0.08sec/60°@6.0V， 25Kg.cm/0.07sec/60°@7.4V， 28Kg.cm/0.06sec/60°@8.4V ， 40.5*20*38.6mm



▶ BLS992 – Standard Swashplate Servo

Key Specifications:

  • 6.0V: 20kg・cm torque / 0.08s / 60° speed

  • 7.4V: 25kg・cm torque / 0.07s / 60° speed

  • 8.4V: 28kg・cm torque / 0.06s / 60° speed

Core Features:

  • Motor: 17×18mm high-performance brushless motor, low power consumption, with 30% higher cooling efficiency.

  • Signal: 1520μs / 333Hz high-frequency response, enabling precise input resolution.

  • Structure: Stainless steel output gears with dual-bearing design, 50% more wear-resistant, suitable for long-term high-frequency load.

  • Application: Swashplate attitude control, especially optimized for 700-class competition helicopters performing 3D maneuvers.

View full details

TECHNICAL SPECIFICATIONS

Dimensions: 444 × 90 × 132 mm
Weigh: 264 g (without battery & gyro)
Power System: Motor / ESC Hobbywing Platinum V5 (Integrated)
Supported Protocols DShot150 / 300 / 600
Control System :Servos DS4208 4.2kg · 0.08s @8.4V
Gyro: (Not Included) 3-axis or above, supports tail motor mode
Power Supply System: Battery (Not Included) 3S 750mAh / 4S 650mAh (XT30)
Max Battery Size: 70 × 32 × 24 mm
Receiver: (Not Included) 6 channels or above
Rotor : Main Blades 195 mm, Tail Blades 45 mm
