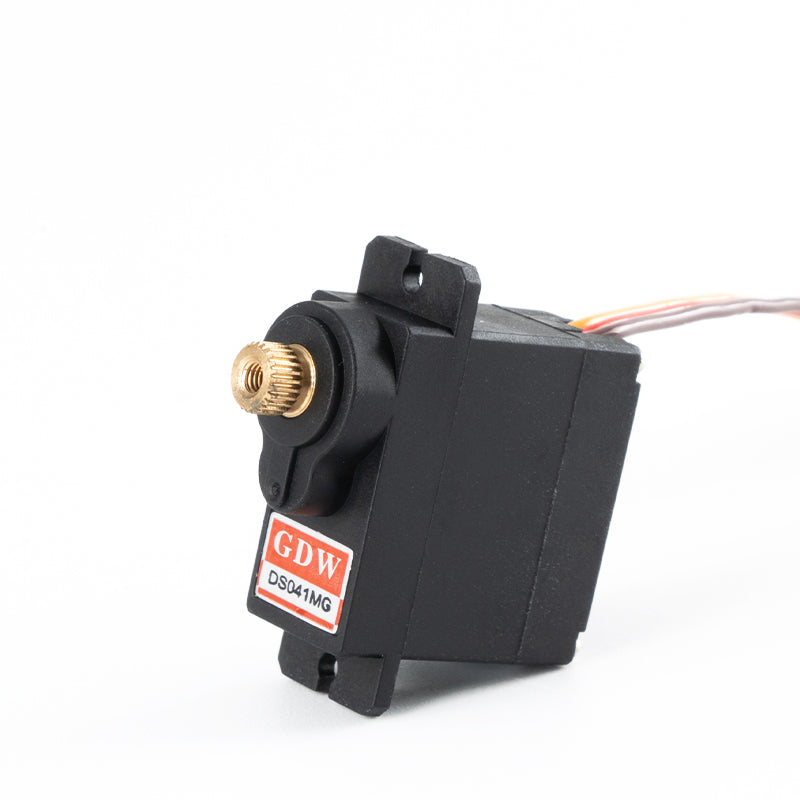

DS041MG - GDW 5KG Torque Metal Gear Robot Helicopter Fixed Wing 9g12g Micro Digital Servo

DS041MG - GDW 5KG Torque Metal Gear Robot Helicopter Fixed Wing 9g12g Micro Digital Servo

$8.00 USD
$8.00 USD
Sale Sold out
Shipping calculated at checkout.

Model: DS041MG

Minimum order: 20

Wheelbase:

Weight: 14g±5

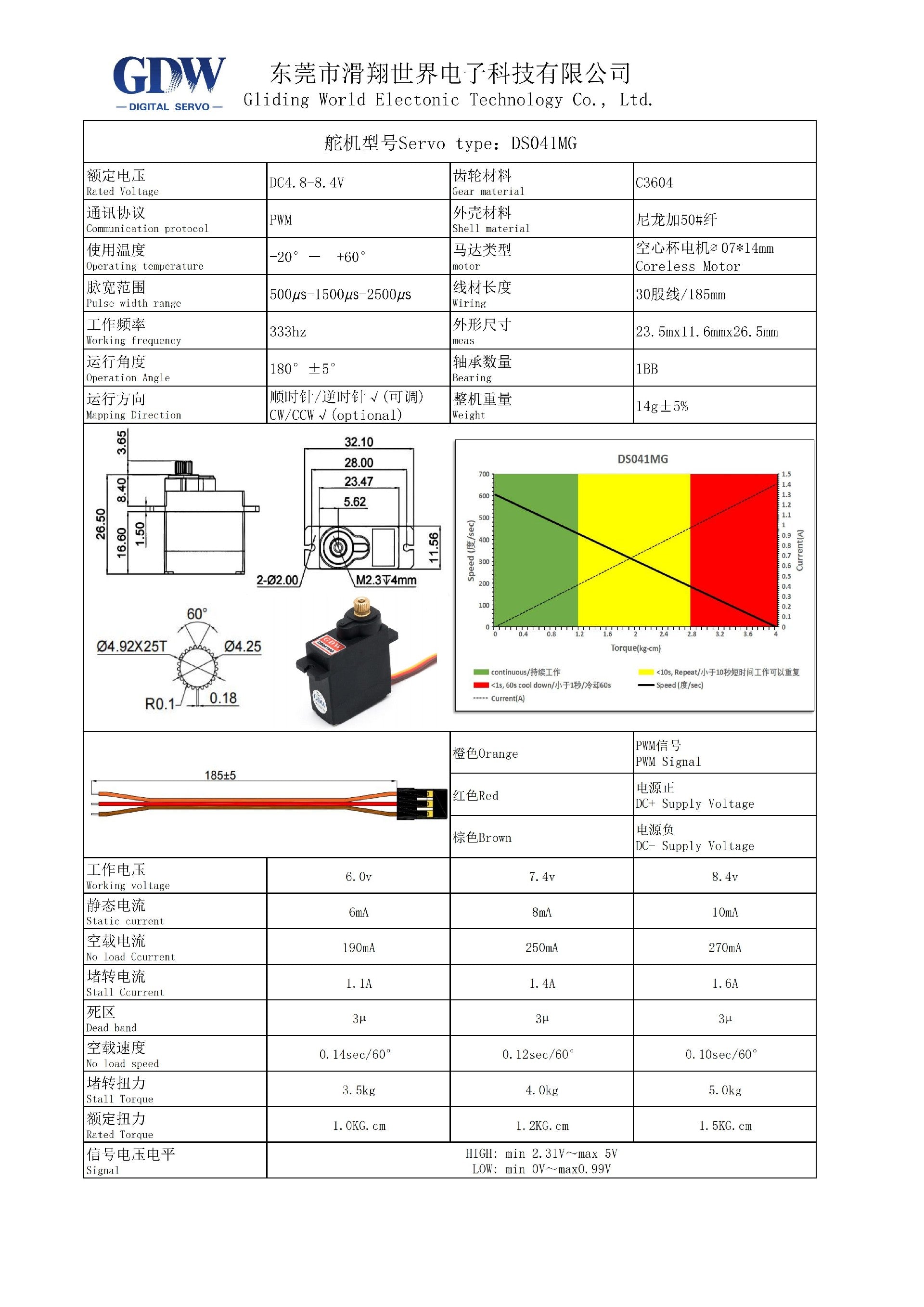

Function: 3.5Kg.cm/0.14sec/60°@6.0V， 4.0Kg.cm/0.12sec/60°@7.4V， 5.0Kg.cm/0.10sec/60°@8.4V ， 23.5*11.6*26.5mm



Product DescriptionThe default angle of the model remote control is approximately 60 degrees, with a pulse width ranging from 1000 to 2000 microseconds. The controllable angle is 90 degrees.Controllable angle: 120 degrees. Commonly used in: RC model cars, RC model aircraft, RC model boats. Pul
Send Inquiry
View full details

TECHNICAL SPECIFICATIONS

Dimensions: 444 × 90 × 132 mm
Weigh: 264 g (without battery & gyro)
Power System: Motor / ESC Hobbywing Platinum V5 (Integrated)
Supported Protocols DShot150 / 300 / 600
Control System :Servos DS4208 4.2kg · 0.08s @8.4V
Gyro: (Not Included) 3-axis or above, supports tail motor mode
Power Supply System: Battery (Not Included) 3S 750mAh / 4S 650mAh (XT30)
Max Battery Size: 70 × 32 × 24 mm
Receiver: (Not Included) 6 channels or above
Rotor : Main Blades 195 mm, Tail Blades 45 mm
