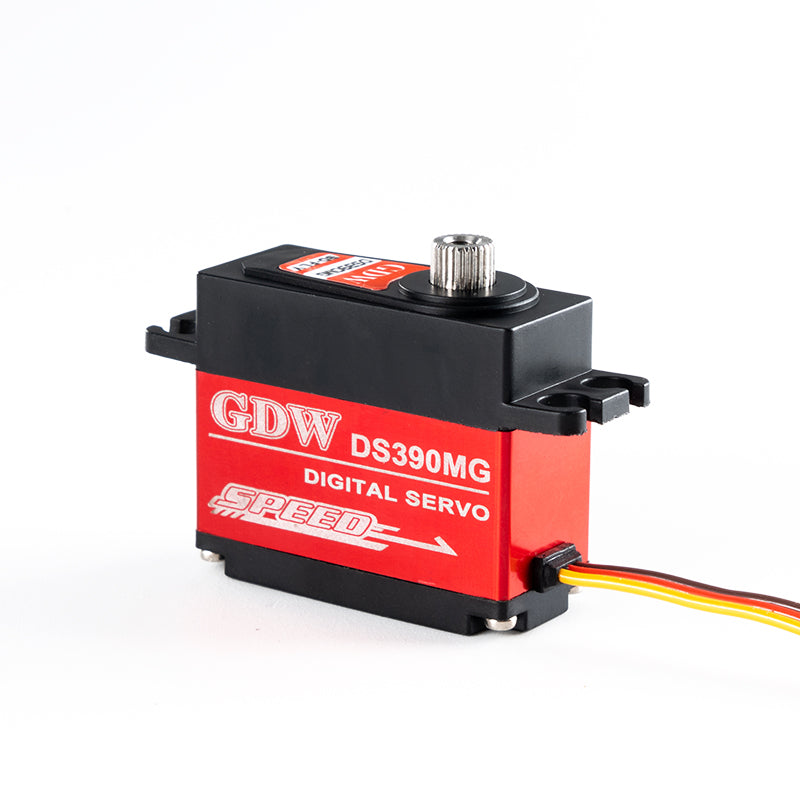

DS390MG - GDW 9KG Torque - Metal Teeth - Coreless Motor - Model Aircraft Fixed Wing - Turbojet Aircraft Medium-sized Digital Servo

DS390MG - GDW 9KG Torque - Metal Teeth - Coreless Motor - Model Aircraft Fixed Wing - Turbojet Aircraft Medium-sized Digital Servo

$29.00 USD
$29.00 USD
Sale Sold out
Shipping calculated at checkout.

Model: DS390MG

Minimum order: 20

Wheelbase:

Weight: 35g

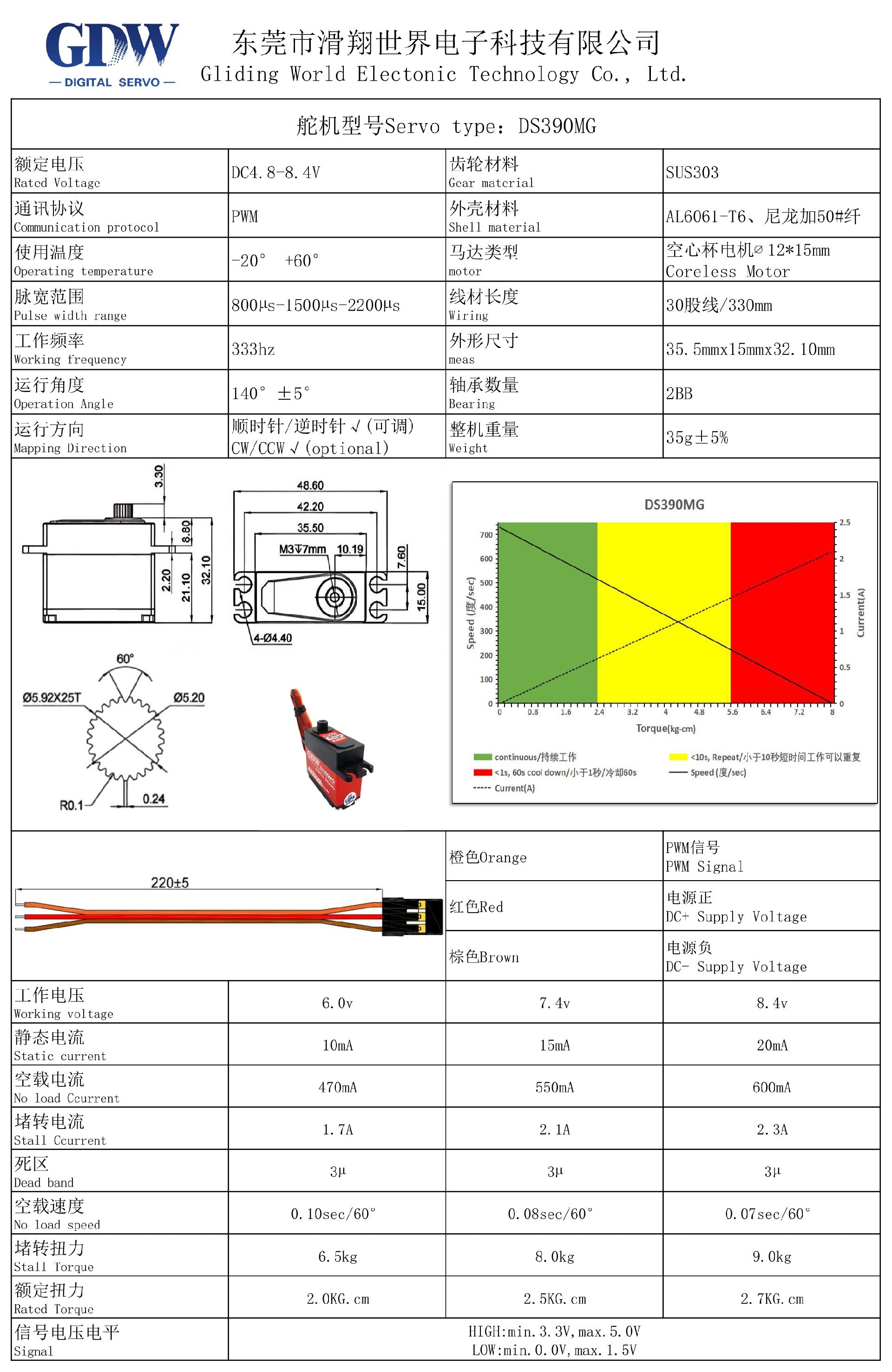

Function: 6.5Kg.cm/0.10sec/60°@6.0V， 8.0Kg.cm/0.08sec/60°@7.4V， 9.0Kg.cm/0.07sec/60°@8.4V ， 35.5*15*32.1mm



GDW DS390MG Digital ServoThe GDW DS390MG is a medium-size high-performance digital servo designed for fixed-wing RC aircraft and EDF jets. With a powerful 9kg torque output, durable metal gear train, and a coreless motor, it ensures precise control, fast response, and stable flight performance even
View full details

TECHNICAL SPECIFICATIONS

Dimensions: 444 × 90 × 132 mm
Weigh: 264 g (without battery & gyro)
Power System: Motor / ESC Hobbywing Platinum V5 (Integrated)
Supported Protocols DShot150 / 300 / 600
Control System :Servos DS4208 4.2kg · 0.08s @8.4V
Gyro: (Not Included) 3-axis or above, supports tail motor mode
Power Supply System: Battery (Not Included) 3S 750mAh / 4S 650mAh (XT30)
Max Battery Size: 70 × 32 × 24 mm
Receiver: (Not Included) 6 channels or above
Rotor : Main Blades 195 mm, Tail Blades 45 mm
