DS590MG - GDW 12KG Torque Steel Gear Coreless Motor 505 XL520 500X Helicopter Medium-sized Digital Servo

DS590MG - GDW 12KG Torque Steel Gear Coreless Motor 505 XL520 500X Helicopter Medium-sized Digital Servo

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.

Model: DS590MG

Minimum order: 20

Wheelbase:

Weight: 49g

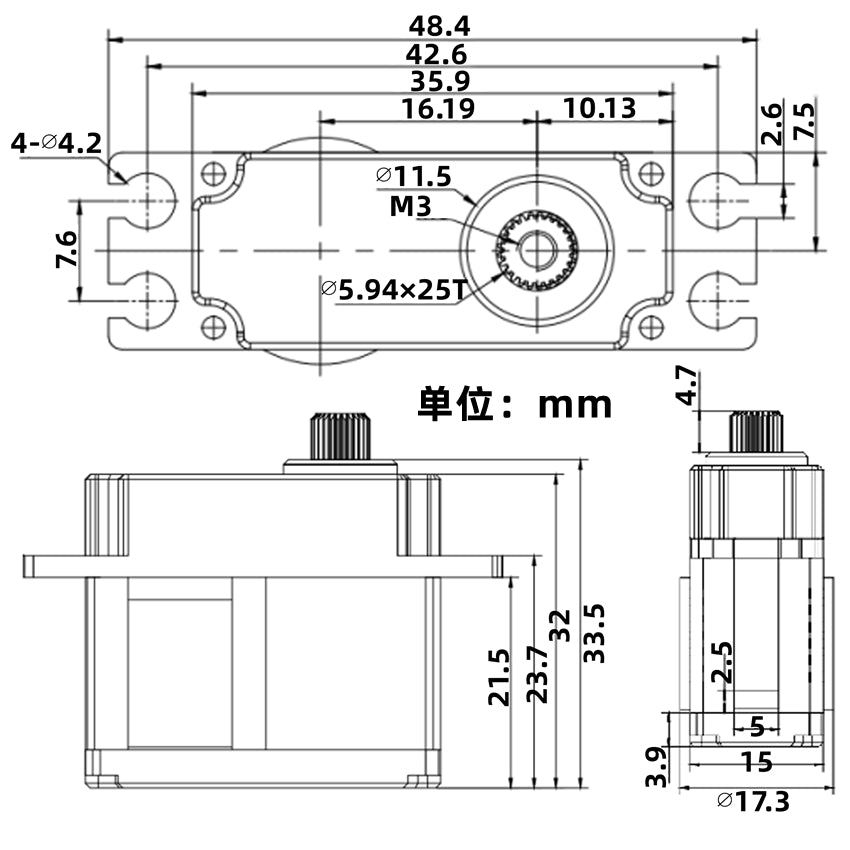

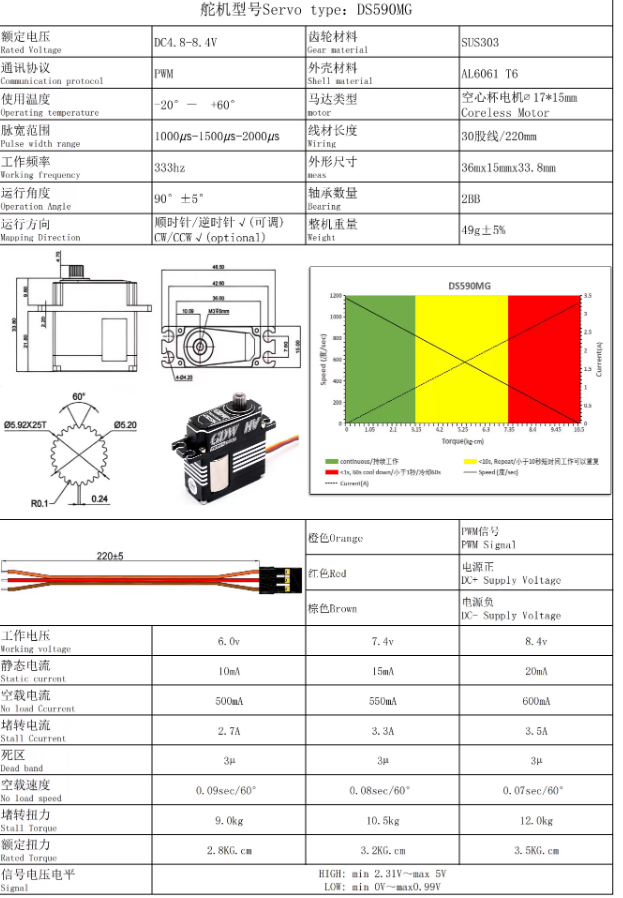

Function: 9.0Kg.cm/0.09sec/60°@6.0V， 10.5Kg.cm/0.08sec/60°@7.4V， 12Kg.cm/0.07sec/60°@8.4V ， 36*15*33.8mm

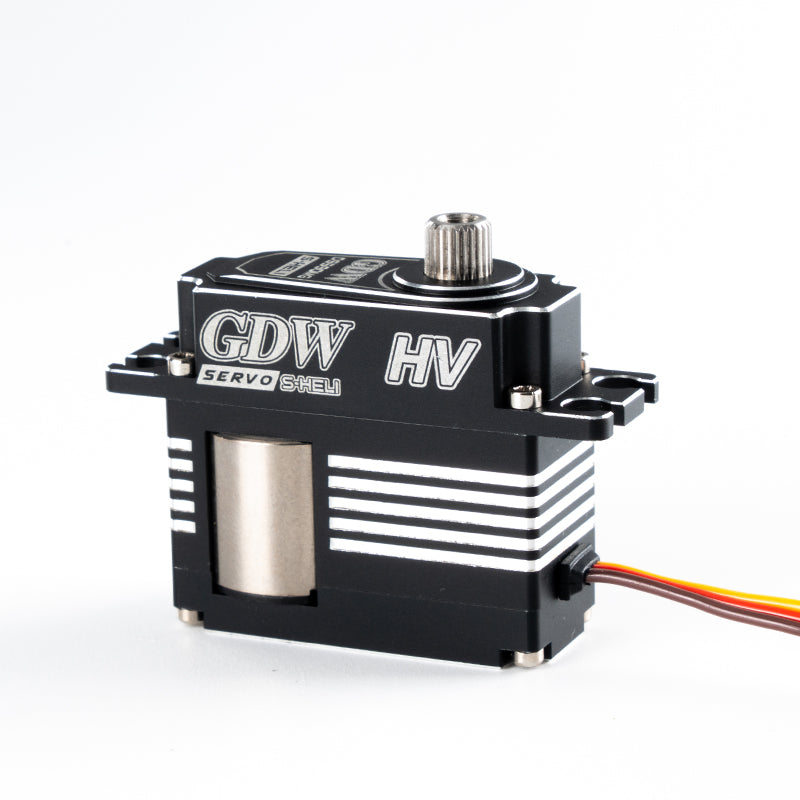

GDW DS590MG Digital ServoThe GDW DS590MG is a medium-size high-torque digital servo designed for RC helicopters such as 505, XL520, and 500X. With a strong 12kg torque output, it delivers the precision and stability required for demanding 3D flight and advanced maneuvers.Equipped with a coreless mot
Send Inquiry
View full details

TECHNICAL SPECIFICATIONS

Dimensions: 444 × 90 × 132 mm
Weigh: 264 g (without battery & gyro)
Power System: Motor / ESC Hobbywing Platinum V5 (Integrated)
Supported Protocols DShot150 / 300 / 600
Control System :Servos DS4208 4.2kg · 0.08s @8.4V
Gyro: (Not Included) 3-axis or above, supports tail motor mode
Power Supply System: Battery (Not Included) 3S 750mAh / 4S 650mAh (XT30)
Max Battery Size: 70 × 32 × 24 mm
Receiver: (Not Included) 6 channels or above
Rotor : Main Blades 195 mm, Tail Blades 45 mm
