DS595MG - GDW 5.5KG Torque - Metal Shell - Steel Gear - Coreless Motor - Helicopter Narrow Frequency Locking Tail Medium-sized Digital Servo

DS595MG - GDW 5.5KG Torque - Metal Shell - Steel Gear - Coreless Motor - Helicopter Narrow Frequency Locking Tail Medium-sized Digital Servo

$54.00 USD
$54.00 USD
Sale Sold out
Shipping calculated at checkout.

Model: DS595MG

Minimum order: 20

Wheelbase:

Weight: 42g

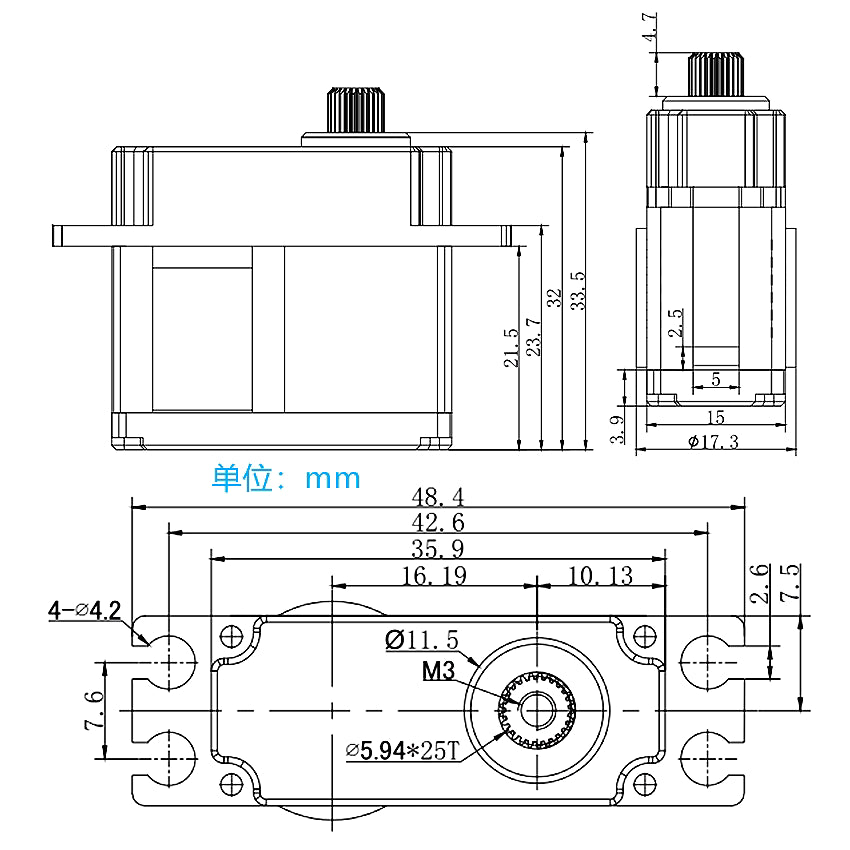

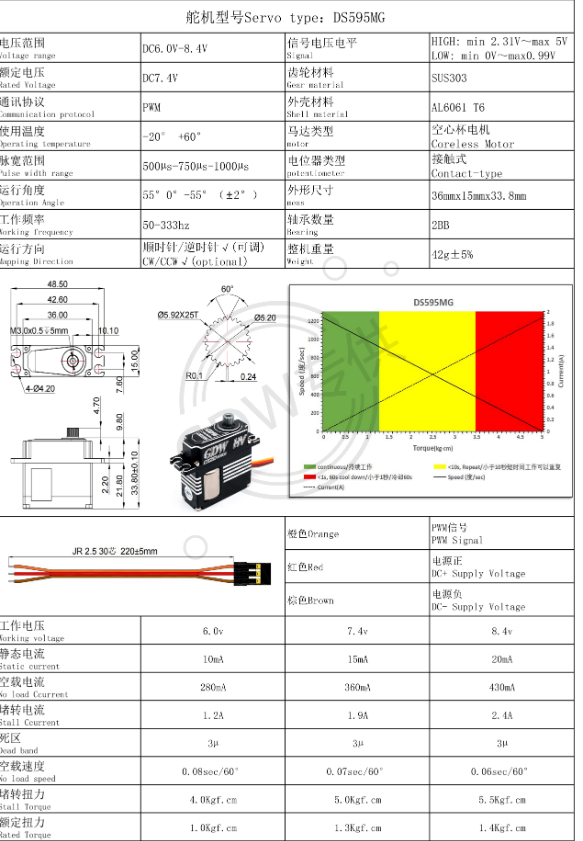

Function: 4.0Kg.cm/0.05sec/60°@6.0V， 5.0Kg.cm/0.04sec/60°@7.4V， 5.5Kg.cm/0.03sec/60°@8.4V ， 36*15*33.8mm



GDW DS595MG Digital Tail ServoThe GDW DS595MG is a high-performance medium-size digital tail servo designed specifically for RC helicopters with narrow frequency lock systems. With a 5.5kg torque output and coreless motor drive, it delivers ultra-fast response, precise control, and excellent stabili
View full details

TECHNICAL SPECIFICATIONS

Dimensions: 444 × 90 × 132 mm
Weigh: 264 g (without battery & gyro)
Power System: Motor / ESC Hobbywing Platinum V5 (Integrated)
Supported Protocols DShot150 / 300 / 600
Control System :Servos DS4208 4.2kg · 0.08s @8.4V
Gyro: (Not Included) 3-axis or above, supports tail motor mode
Power Supply System: Battery (Not Included) 3S 750mAh / 4S 650mAh (XT30)
Max Battery Size: 70 × 32 × 24 mm
Receiver: (Not Included) 6 channels or above
Rotor : Main Blades 195 mm, Tail Blades 45 mm
