G45-09 - GDW 12V 45kg Brushless Metal Gear Servo Motor – RC Car/Helicopter/Drone Part

G45-09 - GDW 12V 45kg Brushless Metal Gear Servo Motor – RC Car/Helicopter/Drone Part

$85.00 USD
$85.00 USD
Sale Sold out
Shipping calculated at checkout.

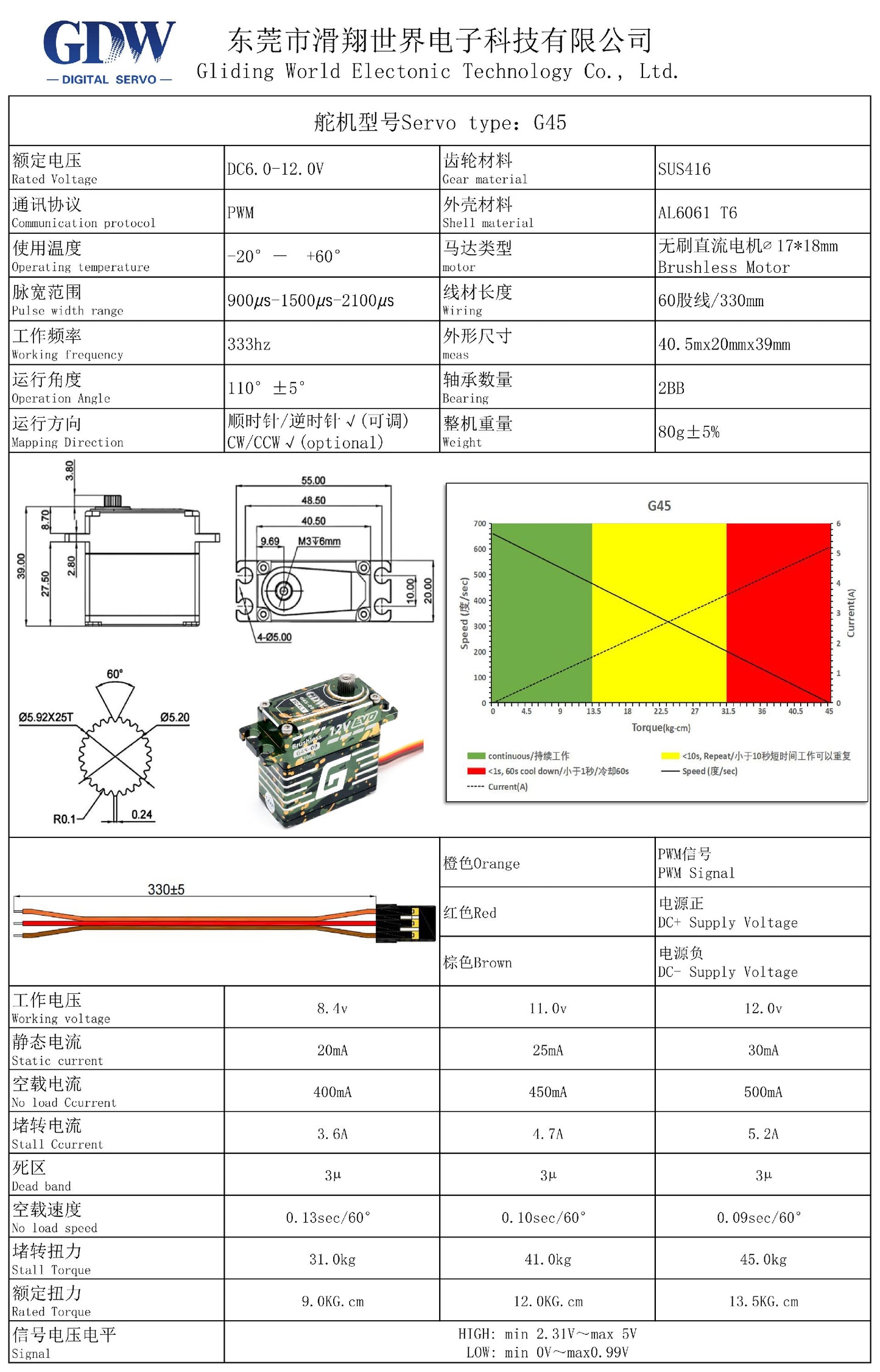

Model: G45-09

Minimum order: 20

Wheelbase:

Weight: 80g

Function: 31Kg.cm/0.13sec/60°@6.0V， 41Kg.cm/0.10sec/60°@7.4V， 45Kg.cm/0.09sec/60°@8.4V ， 40.5*20*39mm



The GDW G45-09 12V 45kg brushless metal gear servo motor is specially designed for RC cars, helicopters, and drones. With a massive 45kg torque, it effortlessly handles complex scenarios such as high-speed steering and heavy-load flight, ensuring stable power output. The 12V brushless technology ach
View full details

TECHNICAL SPECIFICATIONS

Dimensions: 444 × 90 × 132 mm
Weigh: 264 g (without battery & gyro)
Power System: Motor / ESC Hobbywing Platinum V5 (Integrated)
Supported Protocols DShot150 / 300 / 600
Control System :Servos DS4208 4.2kg · 0.08s @8.4V
Gyro: (Not Included) 3-axis or above, supports tail motor mode
Power Supply System: Battery (Not Included) 3S 750mAh / 4S 650mAh (XT30)
Max Battery Size: 70 × 32 × 24 mm
Receiver: (Not Included) 6 channels or above
Rotor : Main Blades 195 mm, Tail Blades 45 mm
