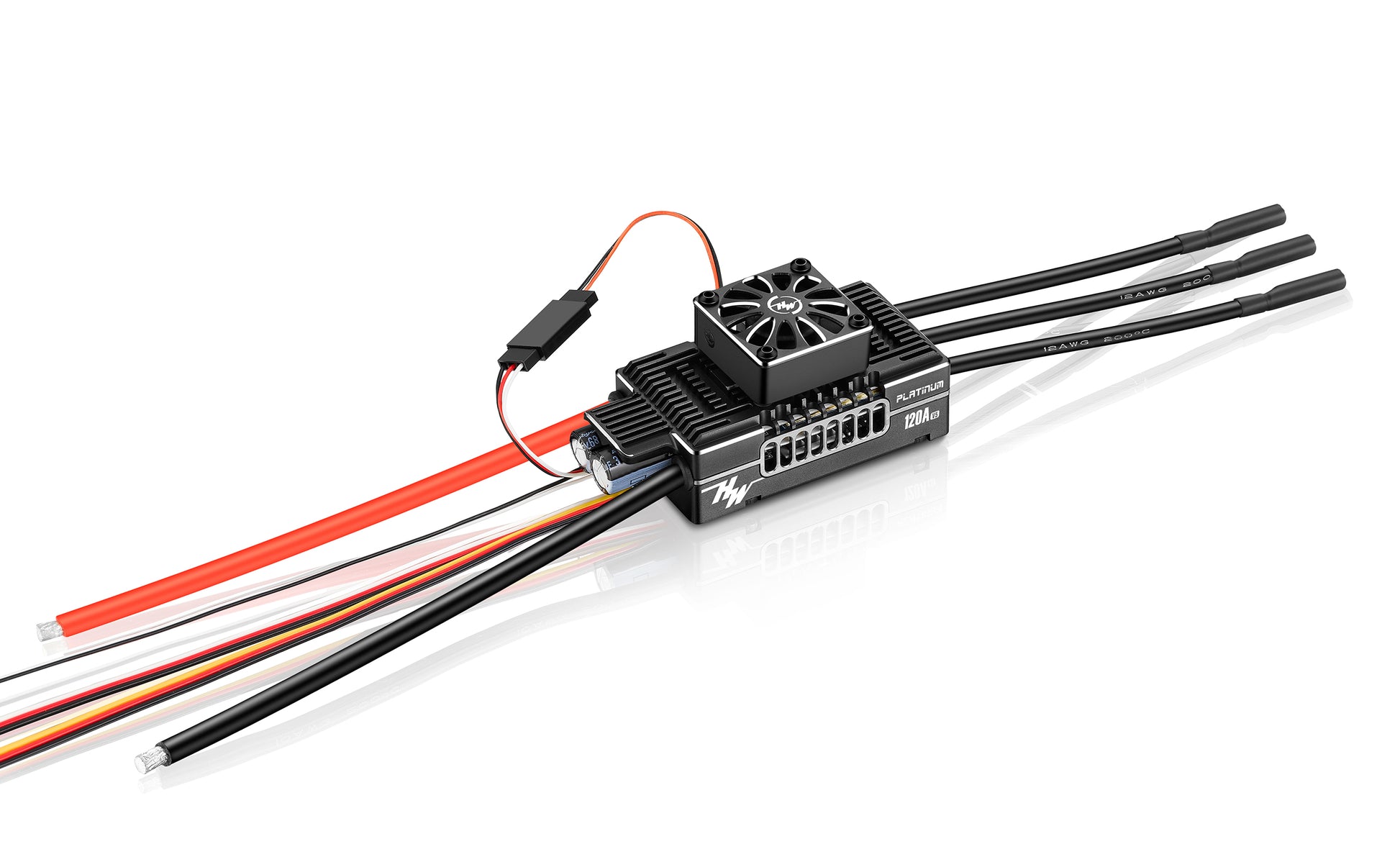

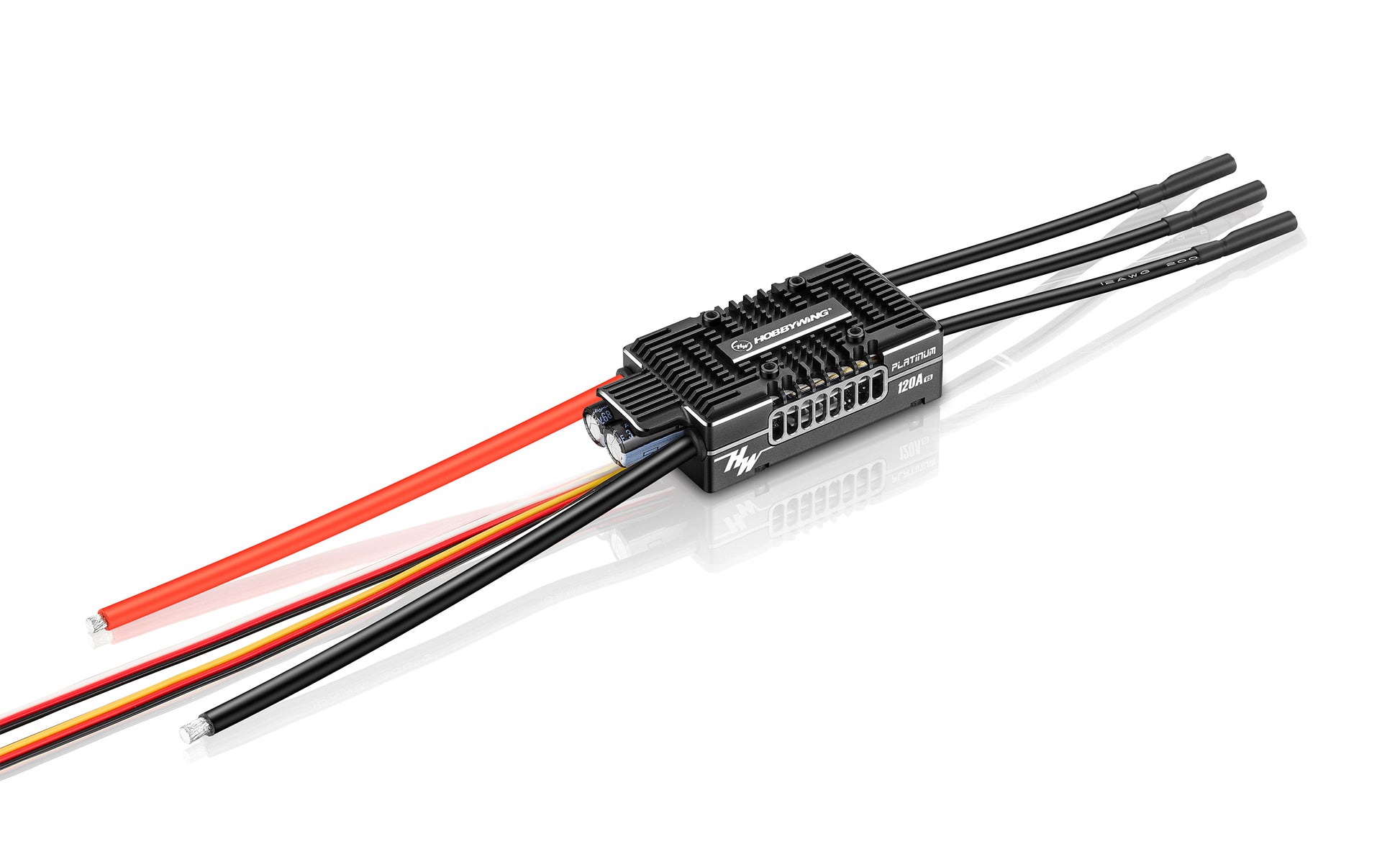

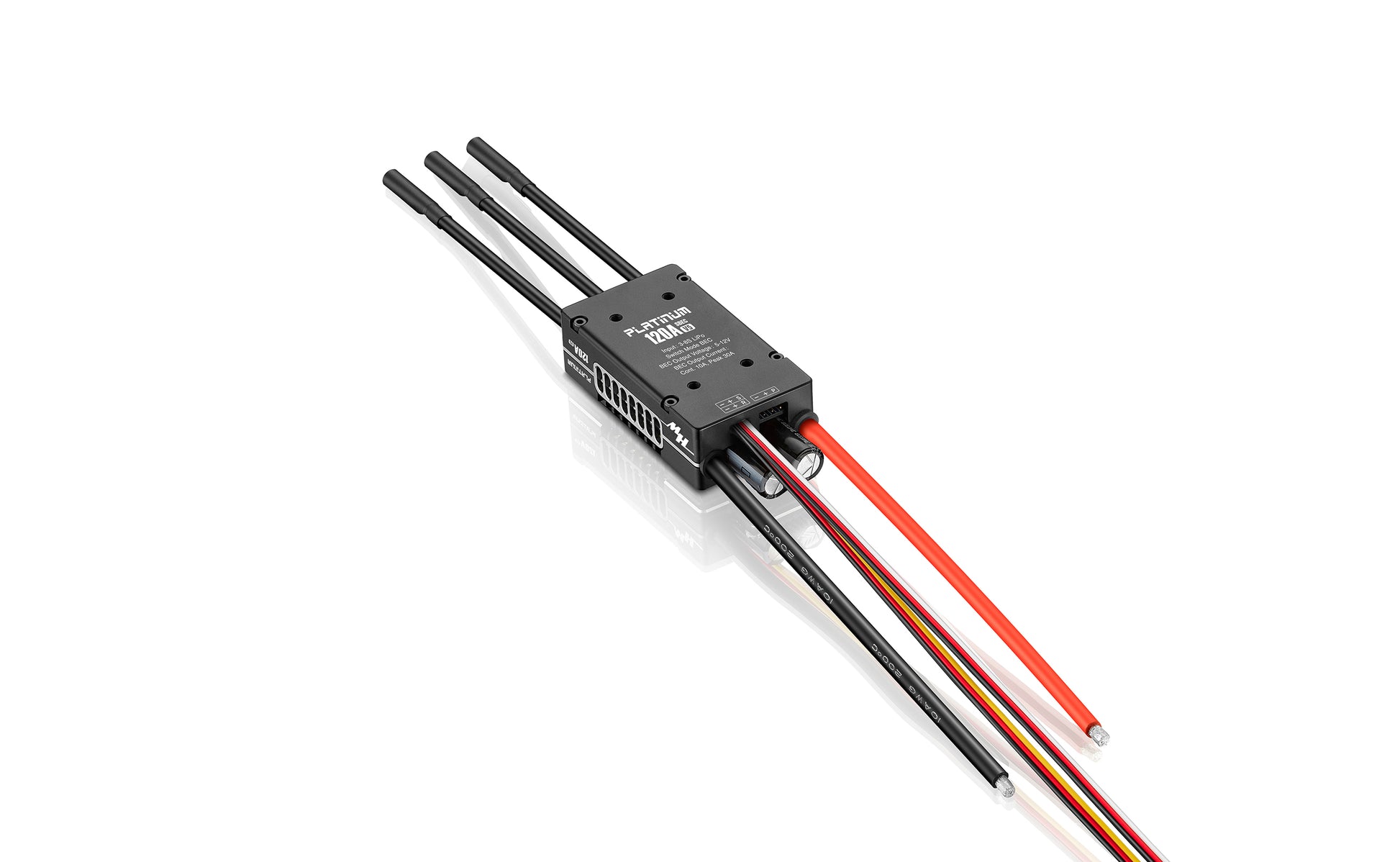

Hobbywing Platinum 120A V5 ESC

HOBBYWING Platinum 120A V5

High-performance brushless ESC designed for 420–520 class electric helicopters and high-end fixed-wing aircraft.

🔧 Key Features

Efficient Cooling Design – Double-sided heat sink with side-vent structure allows air to pass directly through the ESC for superior cooling and long-term reliability.

Built-in Programmable BEC – Adjustable 5–12 V output, providing 10 A continuous and 30 A peak current. Includes anti-reverse protection and supports safe parallel use with an external 2S battery.

32-bit Processor + RPM Precision Algorithm – Ensures consistent, accurate speed control with ultra-smooth throttle response. Adjustable governor sensitivity for different flight styles.

Driving Efficiency Optimization (DEO Technology) – Improves throttle response, increases drive efficiency, extends flight time, and keeps ESC temperature low.

Comprehensive Protection System – Start-up protection, over-current, over-temperature, throttle signal loss, and input-voltage protection provide maximum safety and durability.

📊 Specifications

Continuous / Peak Current: 120 A / 150 A

Input Voltage: 3 – 8 S LiPo

BEC Output: 5 – 12 V adjustable, 10 A continuous / 30 A peak

Dimensions (w/o fan): 83.2 × 37.1 × 22.5 mm

Weight (with wires, no fan): approx. 150 g

Recommended for: 420–520 class electric helicopters or equivalent fixed-wing models

⚙️ Ideal For

Pilots who need a compact yet powerful ESC for 420–520 class setups

Advanced flyers focused on 3D performance, reliability, and efficient cooling

High-power builds requiring stable BEC output and precise throttle control

💡 Why We Recommend It

The Platinum 120A V5 combines modern cooling architecture, intelligent control, and robust protection in one compact package.
It delivers the perfect balance of power, precision, and efficiency — ideal for mid-size electric helicopters and fixed-wing aircraft.
