Hobbywing Platinum 150A V5.1 SBEC ESC

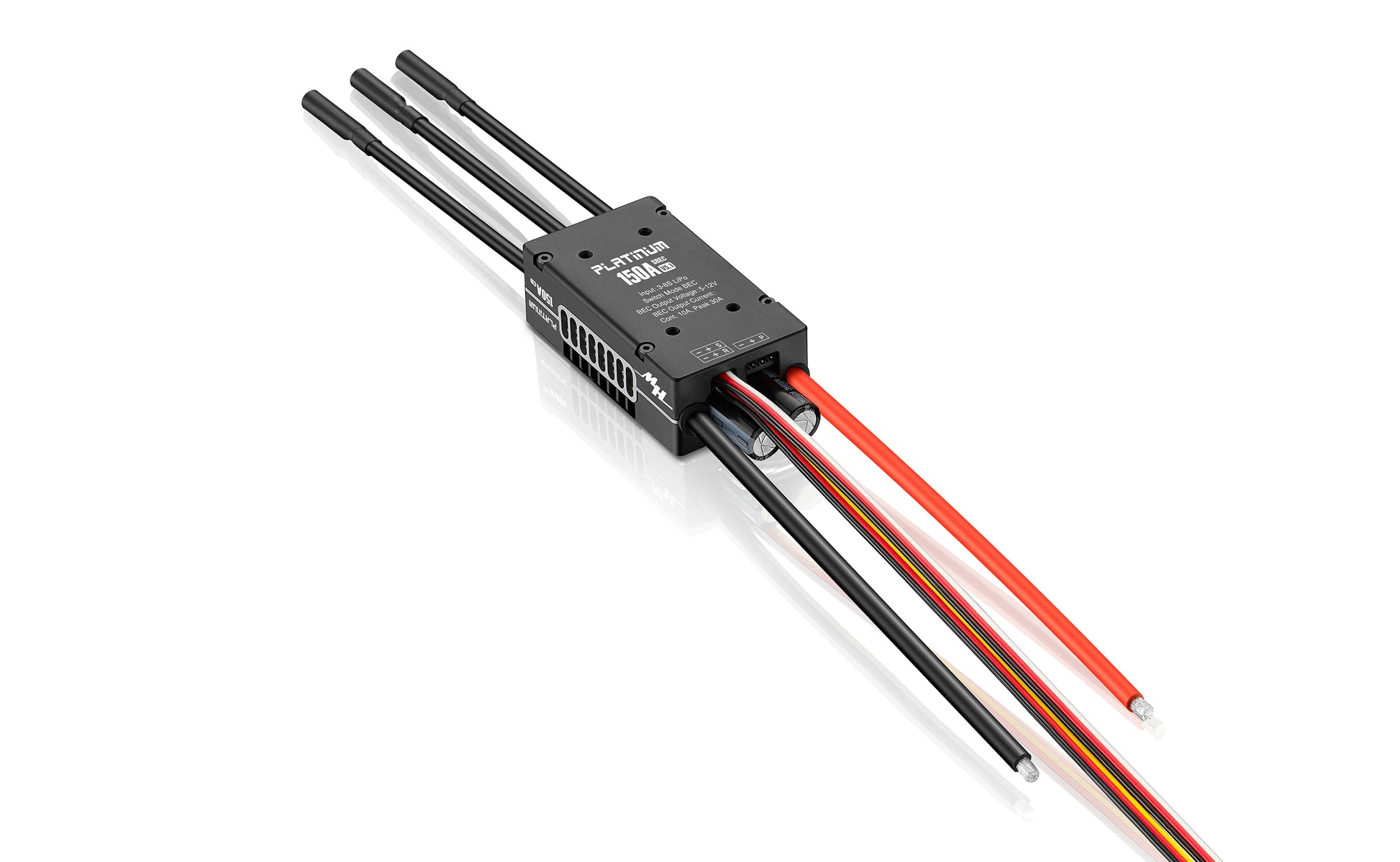

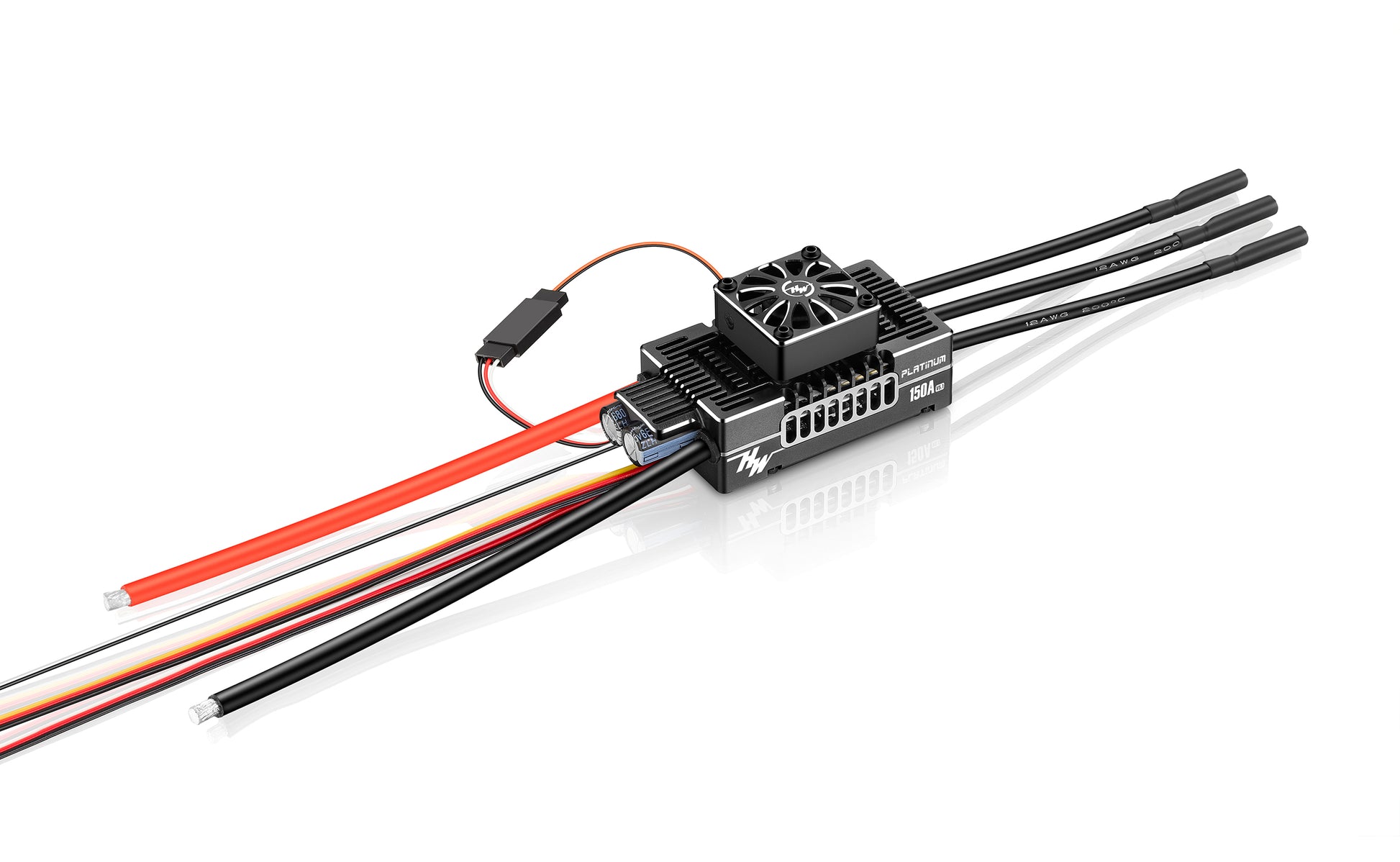

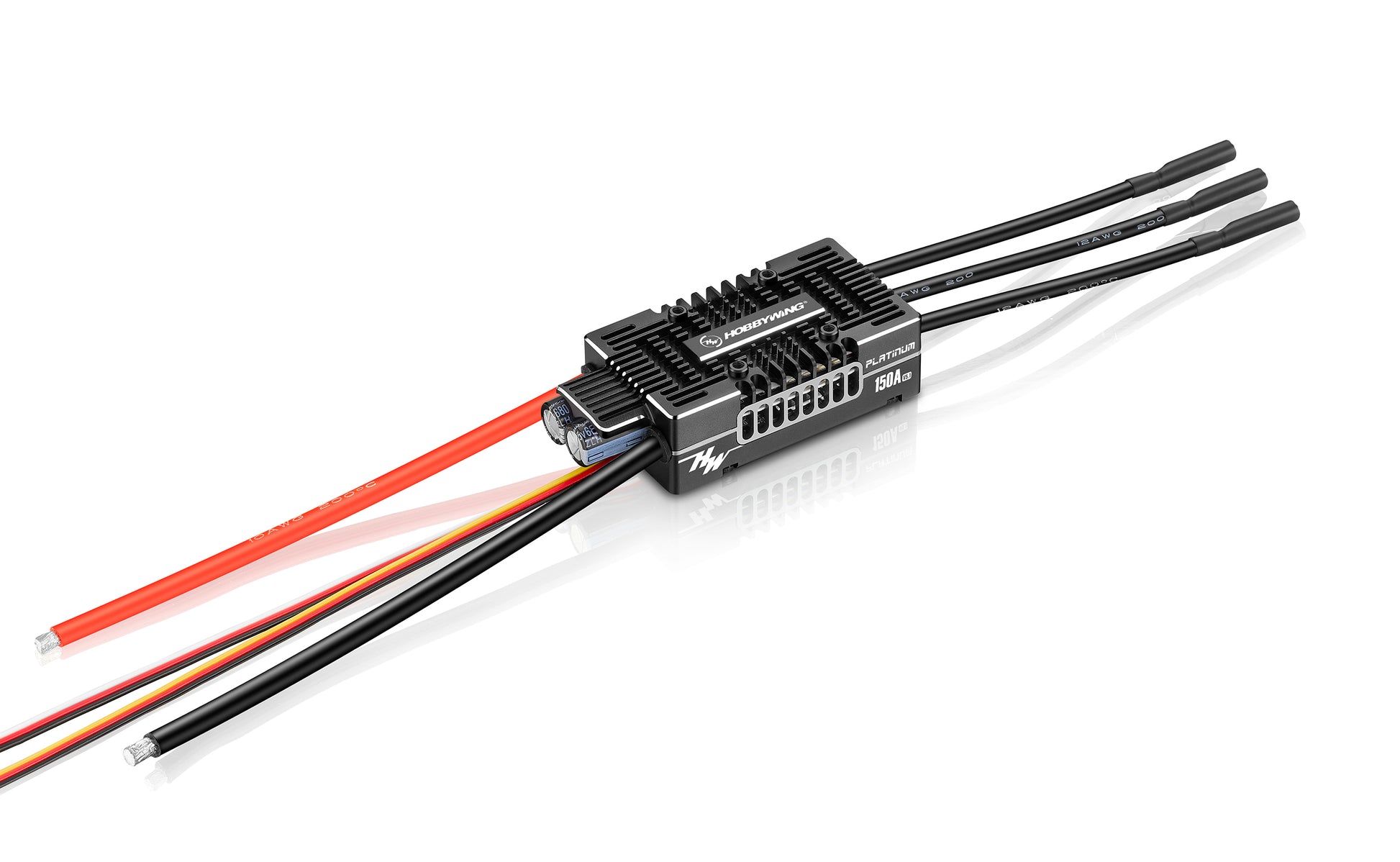

Hobbywing Platinum 150A V5.1 SBEC

Compact yet high-performance ESC built for 520–580 class electric helicopters and fixed-wing models.

🔧 Key Features

Advanced Cooling Design – Retains the Platinum V5 series’ double-sided hollow heat-sink structure with an added side-window for enhanced airflow; air moves quickly through the ESC’s internals for superior cooling.

Built-in High-Power Switch-Mode BEC – Integrated programmable Switch BEC with adjustable output from 5-12 V, up to 25 A continuous output, and anti-reverse circuit allowing parallel use with an external 2S battery for double protection.

32-bit Processor + RPM Accuracy Algorithm – Enables increased consistency and precision in RPM control; adjustable governor (constant speed) sensitivity allows pilots to tailor performance.

Multiple Telemetry Protocols Supported – Compatible with Mikado VBar, Futaba S.BUS2 and other protocols; allows direct parameter adjustments and status monitoring from your transmitter.

Synchronous Rectification (DEO: Driving Efficiency Optimization) – Improves throttle response, increases drive efficiency (longer flight times), and reduces ESC temperature rise for increased reliability.

Comprehensive Protection Features – Includes start-up protection, over-current protection, temperature protection, overload protection, throttle-signal loss protection, input voltage-abnormality protection to extend lifespan and reliability.

📊 Specifications

Continuous / Peak Current: 150 A / 180 A

Input Voltage: 3–8 S LiPo

BEC Output: 5-12 V adjustable; Continuous output 10 A, Peak output 30 A

Dimensions (without fan): 83.2 × 37.1 × 22.5 mm

Weight (with wires, no fan): 150.4 g

Recommended Application: 520-580 class electric helicopter (main blade length 520-580 mm) or fixed-wing aircraft.

⚙️ Ideal For

Pilots seeking a compact yet high-power ESC for 520-580 class setups.

3D flyers and advanced fixed-wing modelers who demand precision, stability and efficient cooling.

Builds where size and weight matter, but control and reliability cannot be compromised.

This Platinum 150A V5.1 model brings together compact form-factor, modern cooling architecture and high-performance control — making it a strong choice for high-end airplane or heli kits, especially when paired with your brand’s “kit + accessory” strategy. Place it in your “mid-to-large class” line-up as a premium component that supports serious flyers without going to the highest current tier.
