MSH71532 - MSH PROTOS Max Evoluzione 700 KIT (RED)
MSH71532 - MSH PROTOS Max Evoluzione 700 KIT (RED)
Couldn't load pickup availability

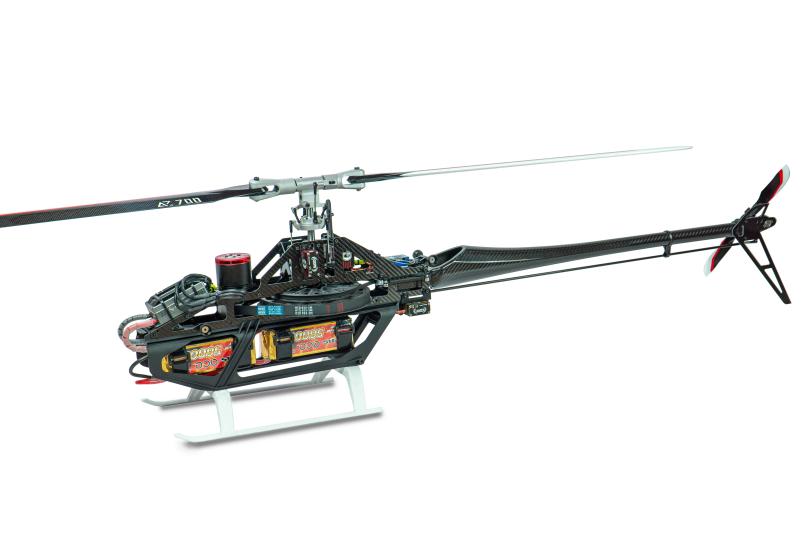

The Protos Max Evoluzione 700 stands at the pinnacle of MSH’s design heritage a helicopter born from over a decade of relentless innovation, competition experience, and pilot-driven refinement. Every curve, every component, and every material choice was made with one goal in mind: to create the ultimate expression of performance, precision, and style in a 700-class electric helicopter.

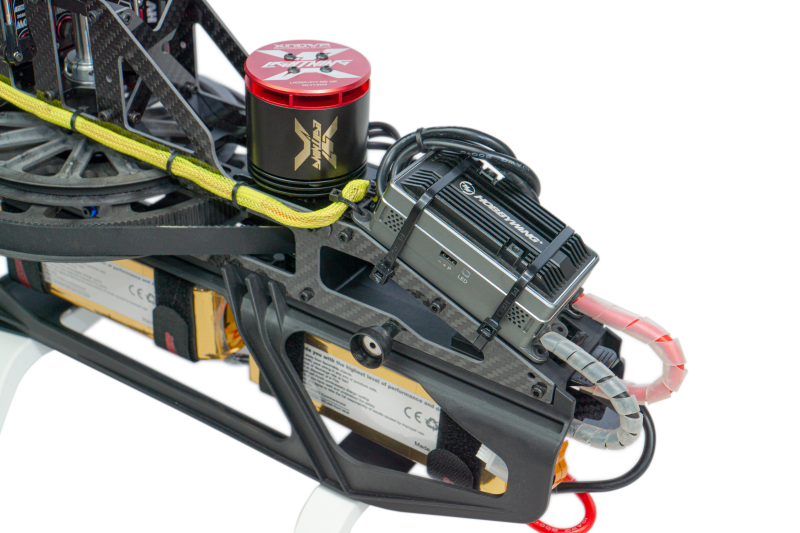

Built on the foundation of MSH’s legendary Protos DNA, the Evoluzione 700 is a study in modern engineering. Its full carbon fiber and aluminum structure achieves uncompromising rigidity while maintaining an incredibly low weight. The one-piece thermoplastic lower frame adds durability and vibration isolation, while the modular belt-driven transmission ensures smooth, efficient power delivery that defines MSH’s signature feel in flight.
From aggressive 3D to fluid, cinematic big-air flying, the Evoluzione 700 handles it all with effortless authority. The belt-driven main system and precision tail ratio deliver torque and consistency through every maneuver, while the massive 700–800 mm rotor range allows pilots to tune the machine perfectly to their flying style.

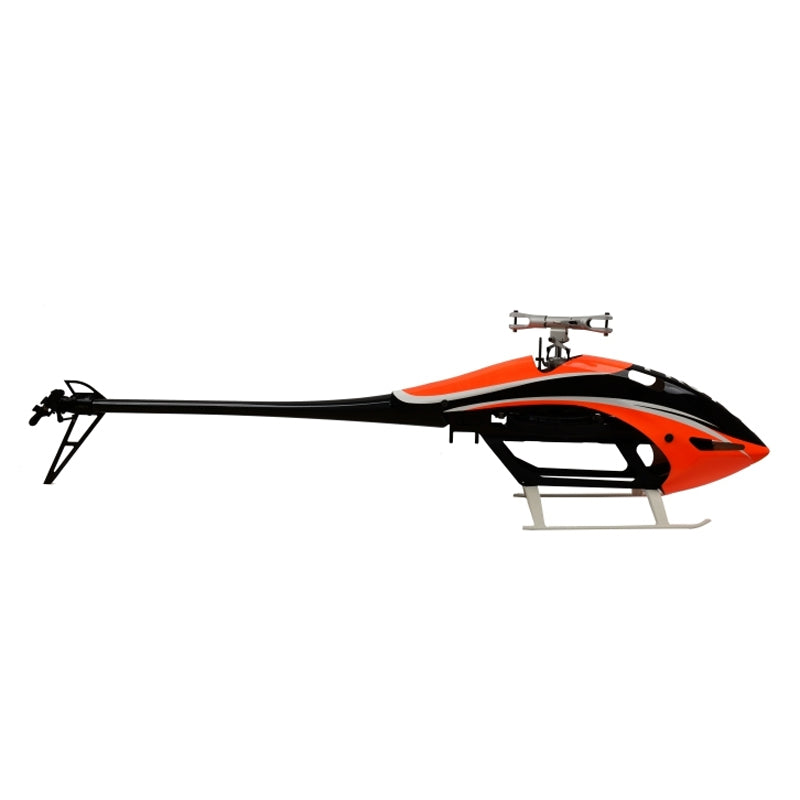

The aesthetics are unmistakably Evoluzione: the low-drag carbon boom, flush-fitting canopy, and streamlined aerodynamic profile don’t just look extraordinary they reduce drag and amplify performance. It’s design as function, art as engineering.
The Protos Max Evoluzione 700 isn’t just a helicopter.
It’s the culmination of MSH’s philosophy pure performance refined to perfection, ready to push the boundaries of what’s possible in flight.
Share

TECHNICAL SPECIFICATIONS
Frame: Support frame made in 2 mm carbon fiber and aluminum
Bottom Frame: Made in one-piece high-quality thermoplastic materialSystem Transmission (Motor – Main Rotor): 15 mm beltUsable Main Blades:
716 mm (with short boom)
Up to 800 mm (with long boom, optional)
Battery Usable: LiPo from 10S to 14S, 4000–5500 mAh
Battery Compartment Dimensions: 70 mm × 60 mm × 360 mm
Suggested Battery: LiPo 12S 5000 mAh
Main Rotor Diameter:
1577 mm (with 700 mm blades)
1777 mm (with 800 mm blades)
Tail Rotor Diameter: 286 mm (with 105 mm tail blades)
Total Length (without blades): 1371 mm
Total Length (with blades):
1757 mm (with 700 mm blades)
1857 mm (with 800 mm blades)
Main Shaft Diameter: 12 mm (totally hollow)
Tail Shaft Diameter: 6 mm
Fully Height: 365 mm
Swashplate Servos: 3 × standard servos
Tail Servo: 1 × standard servo
Maximum Dimension of Main Blade Root: 14 mm, M5 screw
Maximum Dimension of Tail Blade Root: 5 mm, M3 screw
Teeth Pinion: 20T included (optional: 18T, 19T, 21T, 22T, 23T)
Main Pulley Teeth: 190T
Autorotation Pulley Teeth: 143T
Tail Pulley Teeth: 30T
Tail Boom Diameter: 27 mm
Spindle Diameter: 10 mm
