Theta

TS-KKES 8.4V - Theta Kenny Ko Edition HV Servo Set

TS-KKES 8.4V - Theta Kenny Ko Edition HV Servo Set

$479.99 USD
$479.99 USD
Sale Sold out
Shipping calculated at checkout.

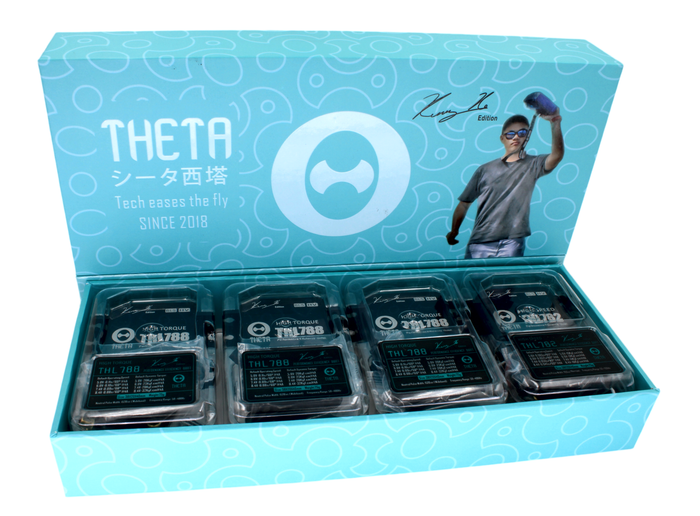

This is a box set, which includes 3 THL788 cyclic servos and a THL782 tail servo. The servos were optimized in collaboration with multiple time world champion, Kenny Ko.

  • High Voltage
  • High Speed
  • Excellent Centering
  • Compatible with Futaba type horns/arms
  • Light Weight

  • THL788 Cyclic Servo:

    Voltage (V) Current (A)

    Speed (s/60°)

    Torque (kg*cm)

    5.0

    4

    0.11

    20

    6.0

    4

    0.10

    23

    7.4

    4

    0.09

    28

    8.4

    4

    0.08

    32
    Neutral Pulse Width: 1520 us
    Frequency Rage: 50-400 Hz


    THL782 Tail Servo:

    Voltage (V) Current (A)

    Speed (s/60°)

    Torque (kg*cm)

    5.0

    4

    0.065

    10

    6.0

    4

    0.057

    12

    7.4

    4

    0.050

    14

    8.4

    4

    0.045

    16
    Neutral Pulse Width: 760 us
    Frequency Rage: 50-700 Hz
View full details

TECHNICAL SPECIFICATIONS

Dimensions: 444 × 90 × 132 mm
Weigh: 264 g (without battery & gyro)
Power System: Motor / ESC Hobbywing Platinum V5 (Integrated)
Supported Protocols DShot150 / 300 / 600
Control System :Servos DS4208 4.2kg · 0.08s @8.4V
Gyro: (Not Included) 3-axis or above, supports tail motor mode
Power Supply System: Battery (Not Included) 3S 750mAh / 4S 650mAh (XT30)
Max Battery Size: 70 × 32 × 24 mm
Receiver: (Not Included) 6 channels or above
Rotor : Main Blades 195 mm, Tail Blades 45 mm
