XL38B08-6 - 25T Adjustable Micro Servo Arm (12–15 mm Length, Ø5 mm Spline)

XL38B08-6 - 25T Adjustable Micro Servo Arm (12–15 mm Length, Ø5 mm Spline)

$19.99 USD
$19.99 USD
Sale Sold out
Shipping calculated at checkout.
Description

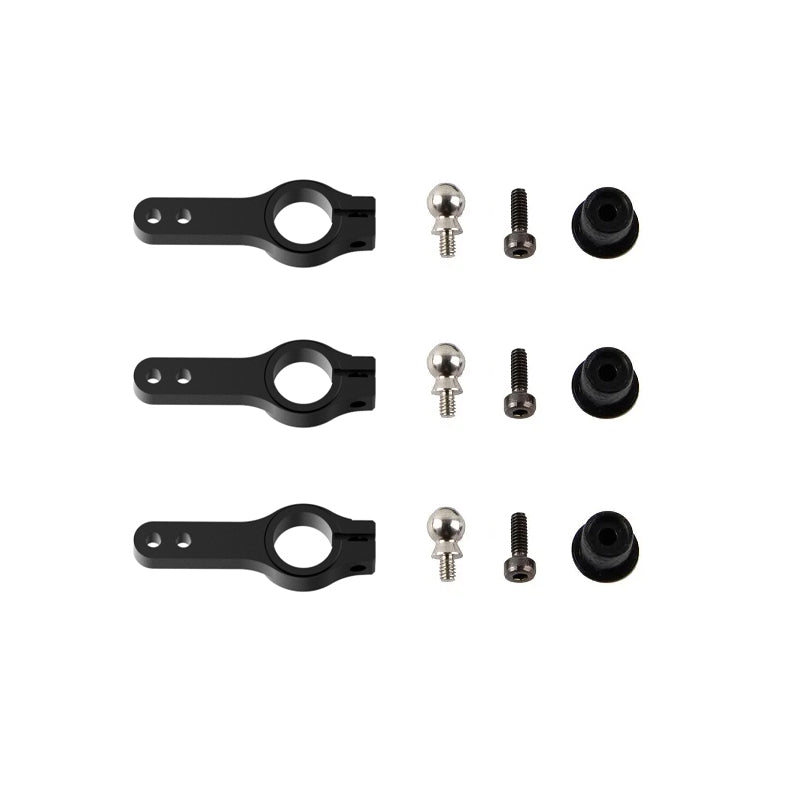

Precision-machined adjustable servo arm designed for micro servos used on models such as the Protos 380.
Features an adjustable arm length from 12 mm to 15 mm for precise control geometry tuning.
The plastic center hub provides crash impact absorption, helping protect servo gears during hard landings or crashes.
Compatible with micro 25T (Ø5 mm spline) servos such as Theta, GDW, and KST.
Includes a 4.5 mm ball link with M2 thread for direct linkage installation.
A 21T hub version is available separately for other micro servo brands.

Specifications
• Type: Adjustable Micro Servo Arm
• Spline: 25T Micro Type (Ø5.0 mm, Theta / GDW / KST compatible)
• Optional Hub: 21T (sold separately)
• Arm Length: 12–15 mm (adjustable)
• Hub Material: Plastic (impact-absorbing to protect servo gears)
• Ball Link: Ø4.5 mm with M2 thread
• Recommended Use: Protos 380 / other micro helicopters
View full details

TECHNICAL SPECIFICATIONS

Dimensions: 444 × 90 × 132 mm
Weigh: 264 g (without battery & gyro)
Power System: Motor / ESC Hobbywing Platinum V5 (Integrated)
Supported Protocols DShot150 / 300 / 600
Control System :Servos DS4208 4.2kg · 0.08s @8.4V
Gyro: (Not Included) 3-axis or above, supports tail motor mode
Power Supply System: Battery (Not Included) 3S 750mAh / 4S 650mAh (XT30)
Max Battery Size: 70 × 32 × 24 mm
Receiver: (Not Included) 6 channels or above
Rotor : Main Blades 195 mm, Tail Blades 45 mm
