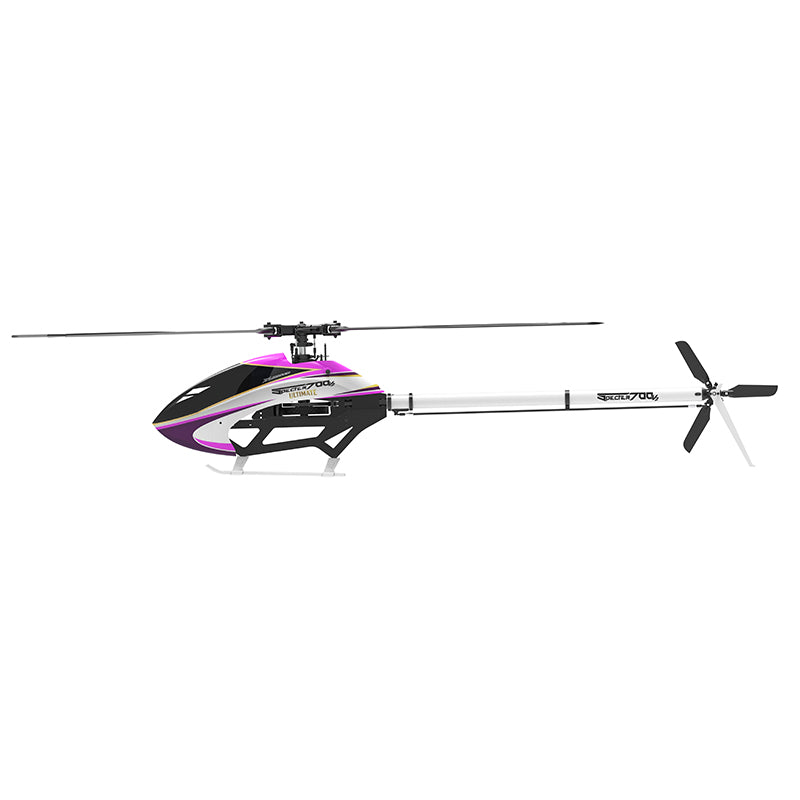

TECHNICAL SPECIFICATIONS
Length w/o main blades: 1,383 mm
Overall height: 351mm
Frame width: 217 mm
Weight (RTF): approx. 5,600 g
Main blade length: 685 – 716 mm
Tail blade length: 95 – 115 mm
Main shaft diameter: 15 mm
Feathering shaft diameter: 10 mm
Tail boom diameter: 32 mm
Tail ratio: 4.76 : 1（5.0Optional）
Drive system: Belt-driven tail, helical main gear
Gear ratio: 9.636 : 1(10.6-8.15 Optional)
Motor mount: One-piece reinforced CNC aluminum design
Frame structure: Multi-layer carbon fiber with strengthened center section
Swashplate geometry: 120° CCPM, 1:1 control ratio
Power system: 12S Li-Po (recommended)
ESC rating: 200 – 300 A class
Motor class: 4525 / 4530 size
Head & tail material: 7075-T6 aluminum
Gyro mount: Rear-mounted vibration-isolated platform
Battery tray: Quick-release latch system
3 blade

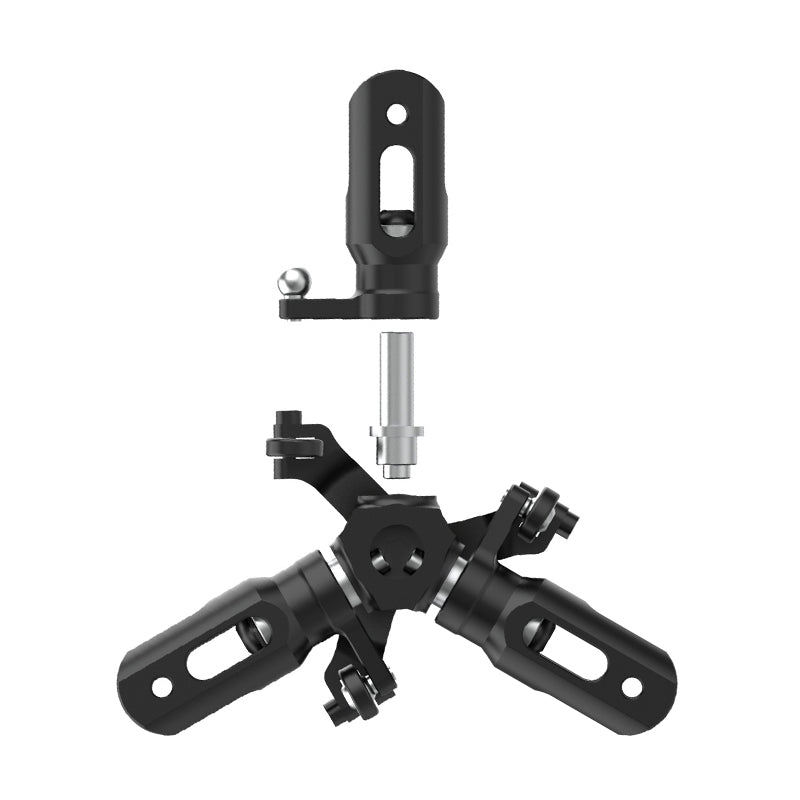

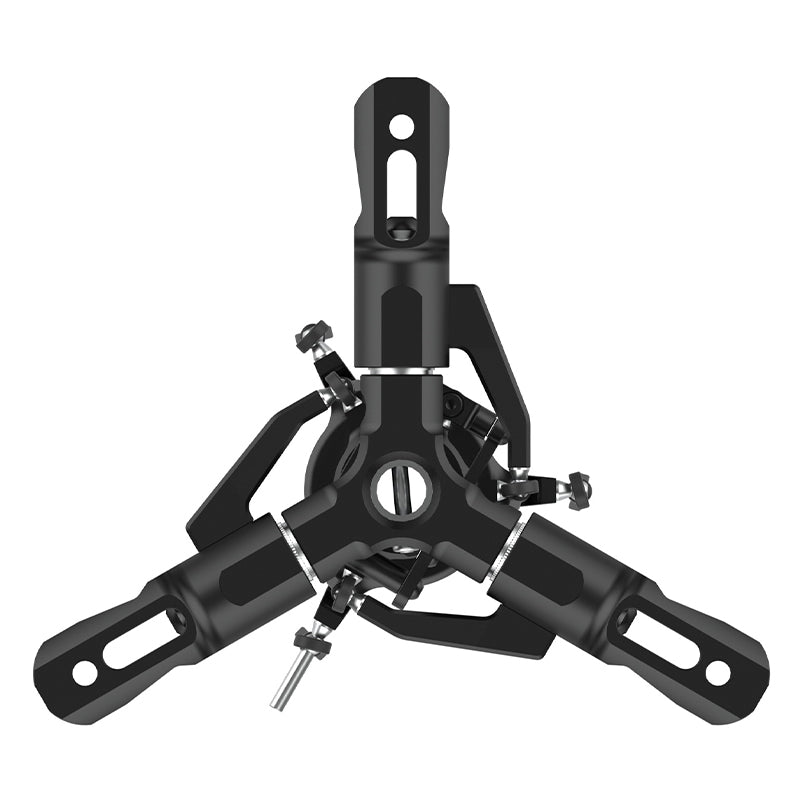

3-BLADE ROTOR SYSTEM
The Specter Ultimate’s 3-blade head system is precision-engineered for maximum rigidity and control.Machined from 7075-T6 aluminum, it delivers rock-solid stability under extreme 3D loads while maintaining buttery-smooth cyclic transitions. Every detail, from the feathering spindle to the pitch links, is optimized for pure, linear flight response.

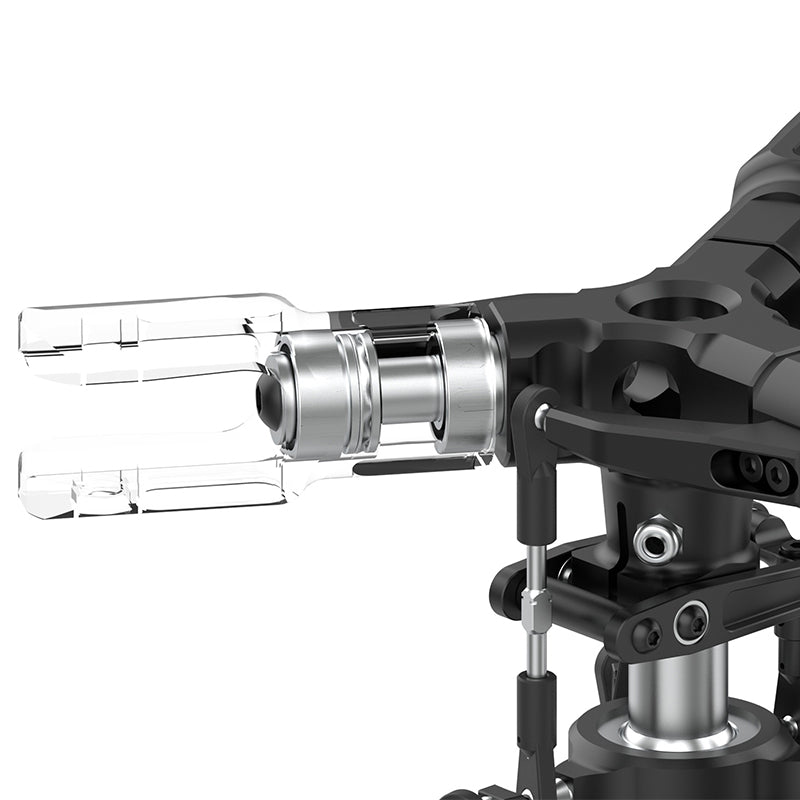

RIGID DAMPER
A newly engineered rigid damper system and bearing block deliver zero play and ultra-low vibration at any head speed. This ultra-precise interface between the spindle and blade grips gives the Specter its iconic “locked-in” flight feel, even through aggressive pitch reversals or high-G tic-tocs. The result is a more direct control response, superior stability, and an exceptionally smooth mechanical pulse.

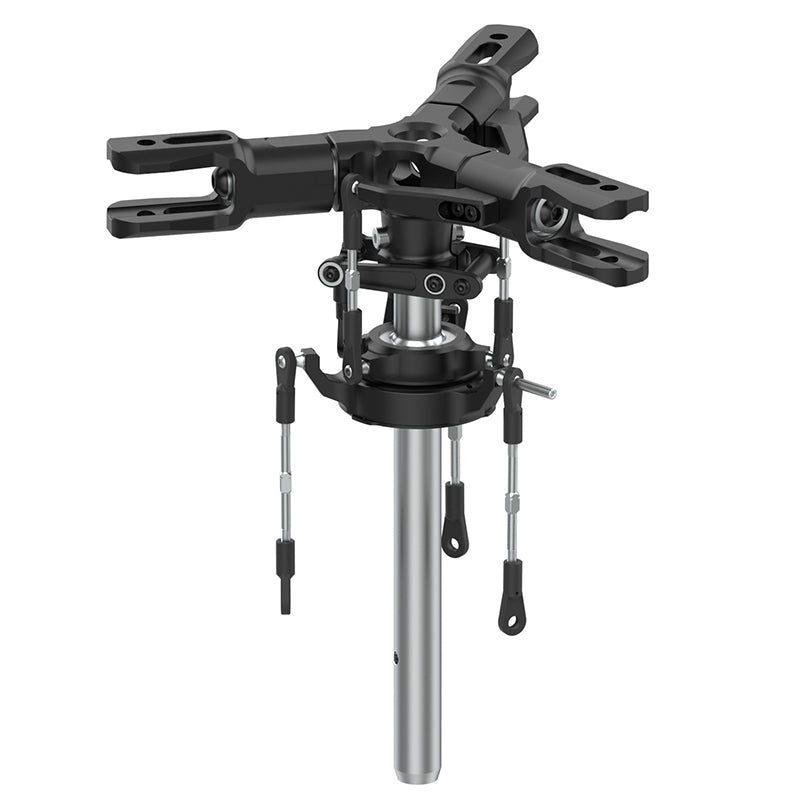

1:1
GEOMETRY
The integrated 1:1 swash-to-rotor geometry guarantees direct, predictable control response. Every linkage aligns perfectly with the centerline of motion, eliminating phasing errors and mechanical distortion. Combined with the ONE-PIECE head block design, pilots experience consistent pitch feel and ultra-precise cyclic authority throughout the entire range.

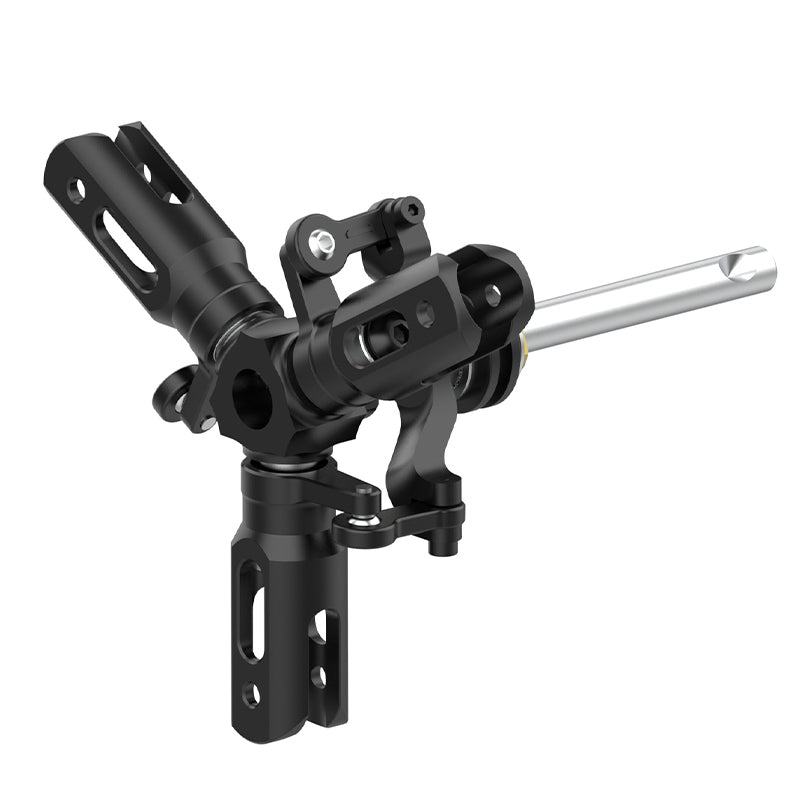

Tail
DESIGN
The modular tail system features a one-piece CNC main hub and reinforced grip mounts for maximum alignment accuracy. Disassembly and service are effortless every spacer, bearing, and shim positions itself precisely, ensuring mechanical harmony. This isn’t just engineering — it’s maintenance made beautiful.

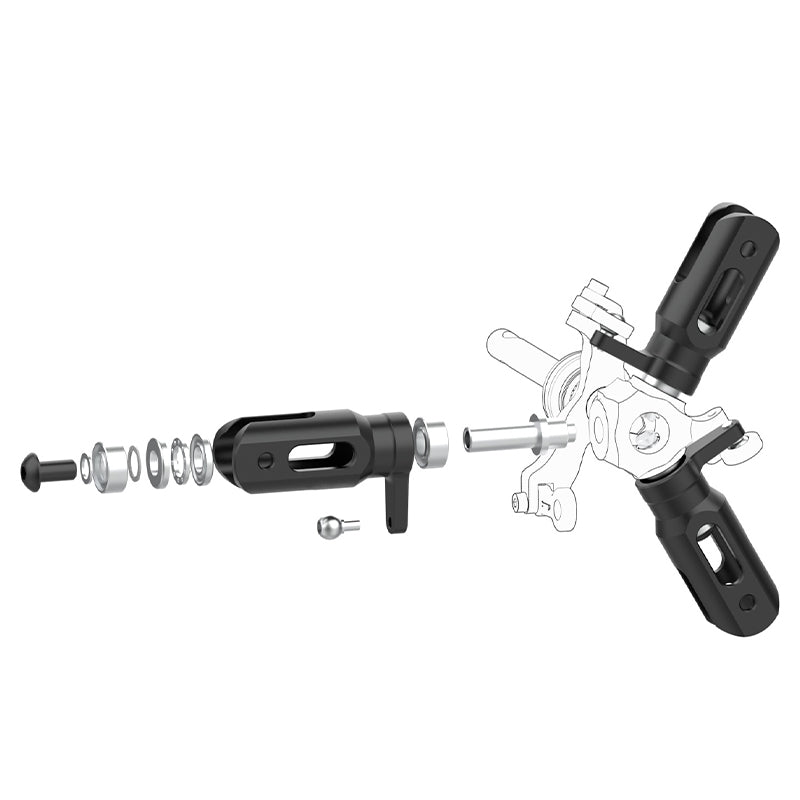

BEARING
STACK
Inside every tail grip lies a triple-bearing stack with precision shims for flawless concentricity and zero axial play.
The design minimizes drag while maximizing tail authority, translating every gyro command instantly to motion.
This attention to micro-detail is what keeps the Specter’s tail locked in through every pirouetting maneuver.
smooth
LINEAR PITCH
The finished 3 blades tail assembly delivers smooth, linear pitch feel with unmatched holding power. Even at peak torque during full-collective punch-outs, the tail holds its heading effortlessly, translating raw motor power into elegant, controlled motion. High-efficiency belt drive and perfectly balanced grips make every stop feel mechanical, deliberate, and exact.
