XL70V2NB20-2 - Specter 700 Nitro Engine Shaft Set V2
XL70V2NB20-2 - Specter 700 Nitro Engine Shaft Set V2
Couldn't load pickup availability

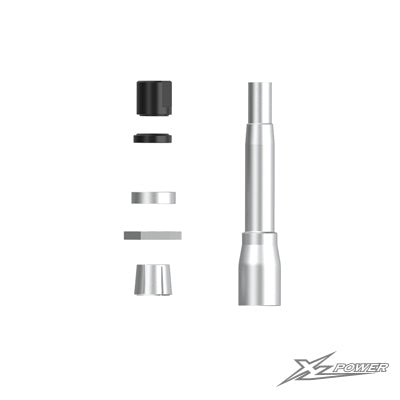

Specter 700 Engine Shaft Set V2
A brand-new design for improved precision and reliability:
• Extended shaft length, ensuring runout less than 0.02mm from factory.
• Significantly improved concentricity of the upper clutch bearing, delivering smoother and more stable transmission.
• Starter coupling no longer sits inside the bearing, reducing the chance of clutch loosening.
• Reduced taper angle on the engine shaft sleeve — reliable engagement without excessive tightening, preventing starter slippage.
• Recommended tightening torque: 18–20 Nm for secure and reliable locking.
👉 Engineered to keep your Nitro system precise and durable at high RPM.
Share

TECHNICAL SPECIFICATIONS
Dimensions: 444 × 90 × 132 mm
Weigh: 264 g (without battery & gyro)
Power System: Motor / ESC Hobbywing Platinum V5 (Integrated)
Supported Protocols DShot150 / 300 / 600
Control System :Servos DS4208 4.2kg · 0.08s @8.4V
Gyro: (Not Included) 3-axis or above, supports tail motor mode
Power Supply System: Battery (Not Included) 3S 750mAh / 4S 650mAh (XT30)
Max Battery Size: 70 × 32 × 24 mm
Receiver: (Not Included) 6 channels or above
Rotor : Main Blades 195 mm, Tail Blades 45 mm
